24V Mean Well HLG
LED driver HLG 100H 24A 24V 96W IP65
HLG100H24A | Manufacturer: Mean Well | MPN: HLG-100H-24A
More info - HLG 100H LED Driver 24A, 24V IP65 Quality Powerful
LED driver HLG 100H 24A 24V 96W IP65 Product category: 24V Mean Well HLG series LED power supplies Description: The HLG 100H 24A LED driver is a versatile solution for powering up your LED lights and moving signs. With universal AC input, adjustable output voltage, and constant current level, this driver ensures consistent brightness and optimal performance. It features multiple protection mechanisms against short circuit, overcurrent, overvoltage, and overheating issues. Suitable for dry/damp/wet locations with an IP65 rating, this robust driver guarantees reliable operation in various environments. Perfect for commercial spaces or eye-catching LED displays. Technical data: - Input voltage: 90~305 VAC /127~431 VDC - Input AC current:1.2 A/115 VA
Introducing the HLG 100H 24A LED driver, a versatile and reliable solution for your lighting needs. This high-performance device is designed to power up your LED lights and moving signs, providing consistent brightness and optimal performance.
The HLG 100H 24A is an advanced LED driver that offers universal AC input with full range capability of up to 305 VAC. It features adjustable output voltage and constant current level through its internal potentiometer. The device comes equipped with multiple protection mechanisms against short circuit, overcurrent, overvoltage, and overheating issues. With built-in active PFC function and a unique three-in-one dimming function (1~10 VDC or PWM signal or resistance), this driver ensures smooth operation of your LEDs while maximizing their lifespan.
This robust LED driver boasts several advantages such as compatibility with dry/damp/wet locations making it suitable for various environments. Its cooling system operates by free air convection ensuring optimal performance even in demanding conditions. Moreover, it has an IP65 rating which guarantees protection against dust ingress and water jets from any direction.
Features- Universal AC input / Full range (up to 305 VAC)
- Adjustable output voltage
- Constant current level
- Multiple protections: Short circuit/ Over current/ Over voltage/ Over temperature
- Built-in active PFC function
- Three in one dimming function (1~10 VDC or PWM signal or resistance)
- Cooling by free air convection
- IP65 rated
The HLG 100H 24A LED driver is perfect for powering LED lighting and moving sign applications. Whether you're illuminating a large commercial space or creating an eye-catching moving LED display, this device delivers reliable performance.
Technical data- Input voltage: 90~305 VAC / 127~431 VDC
- Input AC current: 1.2 A / 115 VAC; 0.55 A / 230 VAC; 0.5 A /277 VAC
- Output: 24V/4A/96W
- Efficiency: Up to93%

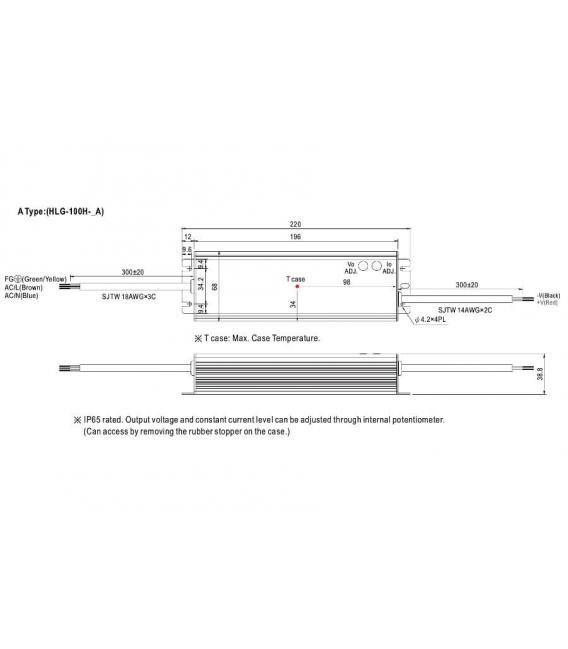

- Dimensions: 220 ×68 ×38.8 mm
- Weight:1,12 kg
To ensure the longevity of your LEDs, always use them within their recommended voltage and current levels.
Warning: Always install and operate the device in accordance with its user manual to avoid any potential safety hazards.
In conclusion, the HLG100H24ALED driver offers a blend of efficiency, reliability and versatility that makes it an excellent choice for all your LED lighting needs. Its robust design coupled with advanced features ensures optimal performance while maximizing energy savings.
