24V Mean Well HLG
LED driver HLG 100H 24B 24V 96W IP67
HLG100H24B | Manufacturer: Mean Well | MPN: HLG-100H-24B
More info - LED Driver HLG 100H 24B Reliable Power Solution
LED driver HLG 100H 24B 24V 96W IP67 Product category: 24V Mean Well HLG series LED power supplies Description: The HLG 100H 24B LED driver is a versatile solution for powering moving sign applications and providing optimal illumination. With adjustable constant current levels, universal AC input, and built-in protections against short circuit and over voltage issues, this driver ensures safe operation at all times. Its active PFC function promotes efficient power usage, while the three in one dimming function allows for flexibility in controlling brightness. Suitable for indoor and outdoor installations in dry/damp/wet locations, this LED driver is perfect for various lighting setups. Technical data: - Safety Standards: UL8750 CSA C22.2 No.250.0-08, E
Introducing the HLG 100H 24B LED driver, a versatile and reliable solution for your LED lighting needs. This high-performance device is designed to power up your moving sign applications and provide optimal illumination in various settings.
The HLG 100H 24B is an advanced LED driver that offers adjustable constant current levels through output cables, allowing you to customize your lighting experience. It features universal AC input and full range capability, handling up to a whopping 305 VAC. With built-in protections against short circuit, over current, over voltage, and over temperature issues, this driver ensures safe operation at all times.
This LED driver stands out due to its active PFC function which promotes efficient power usage. The built-in three in one dimming function provides flexibility in controlling brightness according to your requirements. Moreover, it boasts of free air convection cooling making it suitable for dry, damp or wet locations.
Features- Adjustable constant current level
- Universal AC input / Full range (up to 305 VAC)
- Built-in protections: Short circuit/ Over current/ Over voltage/ Over temperature
- Active PFC function
- Three in one dimming function
- Free air convection cooling system
This product finds extensive use in powering led lighting systems as well as moving sign applications such as dynamic Led displays. Its robust design makes it suitable for both indoor and outdoor installations including dry/damp/wet locations.
Technical data- Safety Standards: UL8750 CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65 or IP67
- Input voltage: 90~305 VAC / 127~431 VDC
- Input ac current: 1.2 A / 115 VAC; 0.55 A /230 VAC; and, 0.5 A/277V AC
- Output:24V/4A/96W
- Efficiency:93%

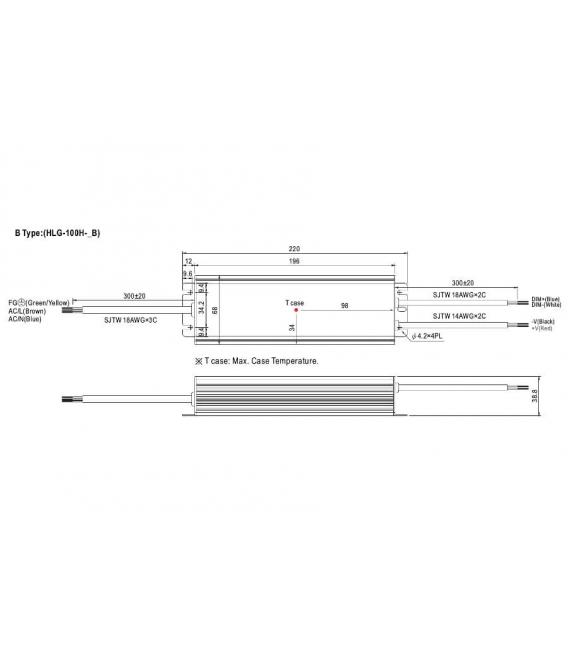

- Dimensions: 220 ×68×38.8mm
:
To ensure the longevity of this LED driver, it is recommended to install it in a well ventilated area to allow for optimal cooling.
Warning!:
Ensure that the device is installed by a qualified electrician to avoid any electrical mishaps.
In conclusion, the HLG100H24B LED driver offers an efficient and reliable solution for your lighting needs with its advanced features and robust design ensuring durability and safety at all times.
.
