24V Mean Well HLG
LED driver HLG 120H 12A 12V 120W IP65
HLG120H12A | Manufacturer: Mean Well | MPN: HLG-120H-12A
More info - LED Driver HLG 120H 12A 12V High Performance, Waterproof Efficient
LED driver HLG 120H 12A 12V 120W IP65 Product category: 24V Mean Well HLG series LED power supplies Description: The HLG 120H 12A LED driver is a versatile solution for powering up your LED lights and moving signs. With universal AC input, adjustable output voltage, and constant current level, this driver ensures stable performance. It features built-in protection against short circuit, over current, over voltage, and over temperature situations for safe operation. Suitable for various applications like residential lighting systems and commercial signage displays. Enhance energy efficiency with its active PFC function and enjoy three dimming options for light intensity control. Technical data: - Input voltage: 90~305 VAC /127~431 VDC - Inp
Introducing the HLG 120H 12A LED driver, a versatile and reliable solution for your lighting needs. This high-performance device is designed to power up your LED lights and moving signs, providing you with bright and consistent illumination whenever you need it.
The HLG 120H 12A is an advanced LED driver that offers universal AC input and full range capability of up to 305 VAC. It features an internal potentiometer that allows easy adjustment of output voltage and constant current level. The device comes equipped with multiple protection mechanisms against short circuit, over current, over voltage, and over temperature situations ensuring safe operation at all times.
This LED driver stands out due to its built-in active PFC function which enhances energy efficiency while reducing harmonic distortion in the electrical system. Additionally, it provides three dimming options (1~10 VDC or PWM signal or resistance) giving users control over light intensity according to their preference or requirement.
Features- Suitable for dry/ damp/ wet locations
- Built-in active PFC function
- Built-in three in one dimming function (1~10 VDC or PWM signal or resistance)
- Cooling by free air convection
This product finds extensive use in various applications such as residential lighting systems, commercial signage displays etc., where stable power supply for LEDs is required.
Technical data- <
- Input ac current: 1.4 A / 115 VAC,0.6 A /230 VAC,0.55 A/277VAC
- Output:12V/10A/120W
- Efficiency:92%

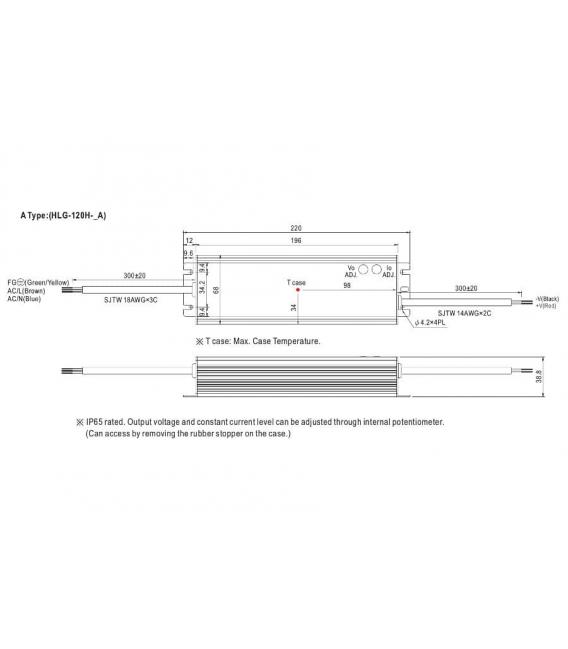

- Dimensions: 220 ×68×38.8mm
li>Input voltage: 90~305 VAC / 127~431 VDC
For optimal performance and longevity of this product, ensure it is installed in a well-ventilated area to facilitate free air convection for cooling.
Warning!Always adhere to safety standards during installation and operation as outlined by UL8750, CSA C22.2 No.250-08, ENEC,TUV EN61347-1/EN61347-2-13.
In conclusion,the HLG 120H 12A LED driver offers an efficient and reliable solution for powering your LED lighting systems or moving sign applications.With its robust features and high-quality design,it ensures you get consistent illumination while enjoying peace of mind with its multiple protection mechanisms.Get yours today,and experience superior lighting control at your fingertips!
