24V Mean Well HLG
LED driver HLG 240H 24B 24V 240W IP67
HLG240H24B | Manufacturer: Mean Well | MPN: HLG-240H-24B
More info - LED Driver HLG 240H 24B Reliable Power Solution
LED driver HLG 240H 24B 24V 240W IP67 Product category: 24V Mean Well HLG series LED power supplies Product description: The HLG 240H 24B LED Driver is a versatile solution for powering moving sign applications and providing optimal illumination in various settings. This advanced LED driver offers adjustable constant current levels, universal AC input, and full range capability up to 305 VAC. With built-in protections against short circuit, over current, over voltage, and over temperature issues, this device ensures safe operation at all times. Featuring an active PFC function and three in one dimming function, it is suitable for dry/damp/wet locations while complying with safety standards such as UL1012 and TUV EN61347-1. Technical data: - Inpu
Introducing the HLG 240H 24B LED driver, a versatile and reliable solution for your LED lighting needs. This high-performance product is designed to power up your moving sign applications and provide optimal illumination in various settings.
The HLG 240H 24B is an advanced LED driver that offers adjustable constant current levels through output cables, allowing you to customize your lighting experience. It features universal AC input and full range capability, handling up to a whopping 305 VAC. With built-in protections against short circuit, over current, over voltage, and over temperature issues, this device ensures safe operation at all times.
This LED driver stands out due to its active PFC function which promotes efficient power usage. The built-in three in one dimming function provides flexibility in controlling brightness according to your preference or need. Moreover, it boasts of an IP67 rating making it suitable for dry/damp/wet locations while complying with safety standards such as UL1012 and TUV EN61347-1.
Features- Universal AC input / Full range (up to 305 VAC)
- Adjustable constant current level
- Built-in protections: Short circuit/ Over current/ Over voltage/ Over temperature
- Active PFC function
- Three in one dimming function
- Suitable for dry/damp/wet locations
- Complies with safety standards: UL1012 & TUV EN61347-1
This robust LED driver is perfect for both residential and commercial use including but not limited to LED lighting and moving sign applications. It's also an excellent choice for outdoor settings given its IP67 rating.
Technical data- Input voltage: 90~305 VAC / 127~431 VDC
- Input AC current: 4 A / 115 VAC, 2 A / 230 VAC, 1.2 A / 277 VAC
- Output: 24V/10A/240W
- Efficiency: Up to a remarkable rate of up to92.5%

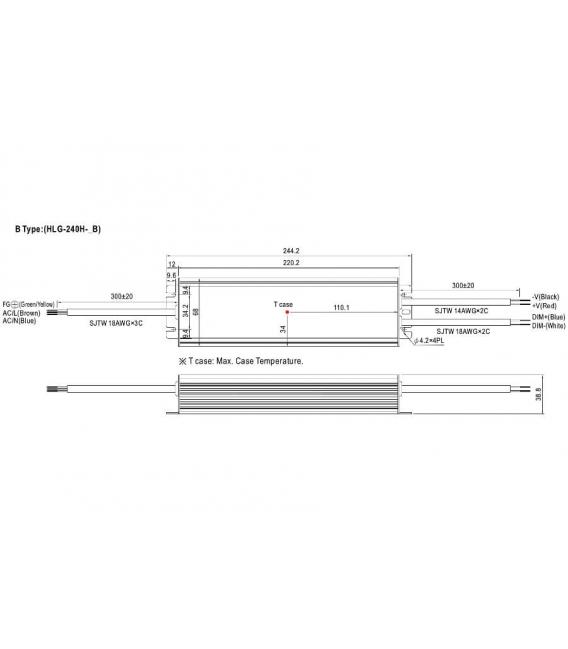

- Dimensions:Compact size of only244.2 ×68×38.8 mm
- Weight: Lightweight at just1.3 kg
In conclusion, the HLG-240H-24B LED driver is a high-quality product that offers reliability and versatility in one package. Its advanced features ensure optimal performance while providing you with the flexibility to customize your lighting experience as per your needs or preferences.
