24V Mean Well LPF IP67
LED driver LPF 16 12 12V 16W IP30
LPF1612 | Manufacturer: Mean Well | MPN: LPF-16-12
More info - Brighten Your Home with LED Driver LPF 16 12 12V 16W IP30
LED driver LPF 16 12 12V 16W IP30 Product category: Mean Well LPF series IP67 LED power supplies The LED driver LPF 16 12 is ideal for powering your LED lighting and moving sign setups. With universal AC input, active PFC function, and full range up to 305 VAC, this driver ensures reliable performance. It features short circuit/over current/over voltage/over temperature protections and a warranty of up to five years. The fully isolated plastic case and IP30 rating meet safety standards for dry/damp/wet locations. Compact in size at just 148 x40 x32 mm and weighing only 0.21 kg, it's easy to install in various fixtures or displays. Technical data: - Input voltage: 90~305 VAC /127~431 VDC - Input ac current: 0.4 A /115 VAC,0.25 A /230
This LED driver LPF 16 12 12V 16W IP30 is the perfect choice for your Led lighting and moving sign applications. It features universal AC input, active PFC function, full range up to 305 VAC, short circuit/ over current/ over voltage/ over temperature protections and a warranty of up to five years. With its fully isolated plastic case and IP30 rating, this product ensures safety standards such as UL8750, CSA C22.2 No.250.0-08 etc., making it suitable for dry/damp/wet locations.
Suitable for Led lighting and moving sign applications (moving Led display). Universal AC input / Full range (up to 305 VAC). Protections: Short circuit/ Over current/ Over voltage/ Over temperature. Built-in active PFC function. Cooling by free air convection.
Advantages- Fully isolated plastic case
- IP30 rating ensuring safety standards
- Universal AC input with full range capability
- Built-in active PFC function for improved power factor correction
- Cooling by free air convection eliminates the need for additional cooling mechanisms
- Short circuit protection prevents damage from electrical faults/li>
- Over current protection safeguards against excessive currents
- Over voltage protection protects connected devices from high voltages
- Over temperature protection prevents overheating of the LED driver
- Suitable for Led lighting and moving sign applications (moving Led display)
- Suitable for dry/ damp/ wet locations
- Universal AC input / Full range (up to 305 VAC)
- Protections: Short circuit/ Over current/ Over voltage/ Over temperature
- Built-in active PFC function
- Cooling by free air convection
- Input voltage: 90~305 VAC / 127~431 VDC
- Input ac current: 0.4 A / 115 VAC, 0.25 A / 230 VAC, 0.2 A /277V AC
- Output:12V /1.34A /16W
- Efficiency :84%

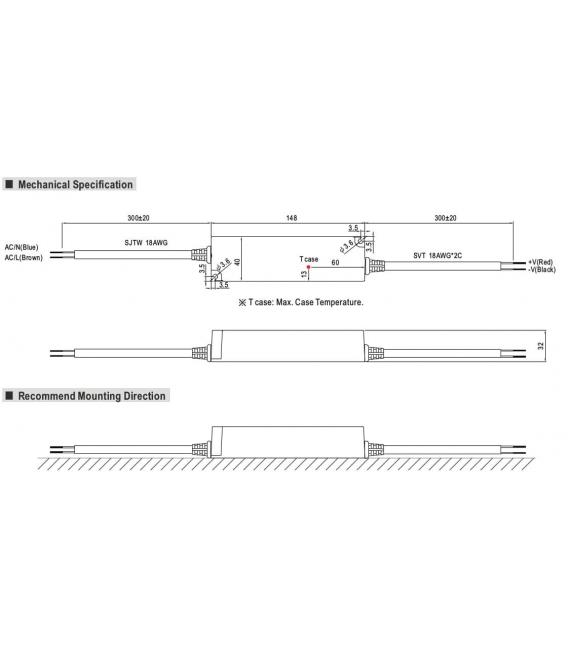

- Dimensions :148 ×40 ×32 mm
- Weighs :0,21 kg
This LED driver LPF 16 is designed with safety in mind and complies with UL8750, CSA C22.2 No.250.0-08 standards as well as EN61347-1, EN61347-2-13 independent and J61347-1,J61347-2-13 approved regulations. With its compact size of just 148 x 40 x 32 mm and weight of only 0,21 kg, this LED driver can be easily installed in various lighting fixtures or moving sign displays.
