24V Mean Well LPF IP67
LED driver LPF 25D 24 24V 25W IP67
LPF25D24 | Manufacturer: Mean Well | MPN: LPF-25D-24
More info - Brighten Your Home with LED Driver LPF 25D 24V 25W IP67
LED driver LPF 25D 24 24V 25W IP67 Product category: Mean Well LPF series IP67 LED power supplies The LED driver LPF 25D 24 is designed for powering LED lighting and moving sign applications. With universal AC input, active PFC function, and a three-in-one dimming feature, this driver offers reliable performance. It has an IP67 protection rating and comes with UL8750 and CSA C22.2 No.250.0-08 approvals for safety. Suitable for dry/damp/wet locations, this compact driver is efficient and durable, making it ideal for upgrading or replacing old power supplies in various LED systems. Please indicate any advice here. Please indicate any warnings here. This description focuses on the practical aspects of the product without mention
This LED driver LPF 25D 24 24V 25W IP67 is perfect for your Led lighting and moving sign applications. It features universal AC input, active PFC function, 3 in 1 dimming function, IP67 protection rating and a warranty of up to five years. With its UL8750, CSA C22.2 No.250.0-08 approved design and an efficiency rate of up to 85.5%, this LED driver will provide reliable performance for years to come!
Suitable for Led lighting and moving sign applications (moving Led display). Suitable for dry/damp/wet locations.
Advantages- Universal AC input / Full range (up to 305 VAC)
- Built-in active PFC function
- Built-in three-in-one dimming function (1~10 VDC or PWM signal or resistance)
- Cooling by free air convection
- Fully isolated plastic case
- IP67 protection rating
- No FG - Class II power unit
- Suitable for dry/ damp/ wet locations
- Safety standards: UL8750, CSA C22.2 No.250.0-08, EN61347-1, EN61347-2-13 independent, EN62384,J61347-1, J61347-2-13 approved, IP67 approved; Design refer to UL60950-1, TUV EN60950-1
- Input voltage: 90~305 VAC / 127~431 VDC
- Input ac current: 0.4 A / 115 VAC, 0.25 A / 230 VAC, 0.2 A / 277 VAC
- Output: 24V/1.05A/25W
- Efficiency: up to 85.5%

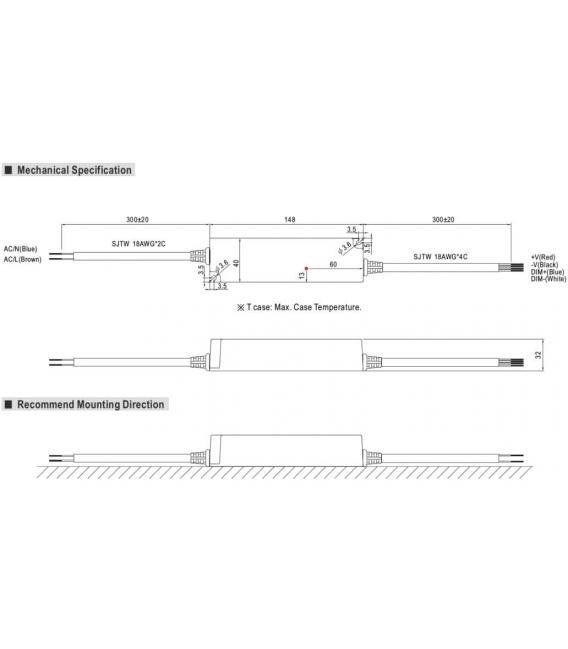

- Dimensions: 148 ×40 ×32 mm
Please indicate any advice here.
Please indicate any warnings here.
This LED driver LPF 25D is the perfect choice for your Led lighting and moving sign applications. With its universal AC input and active PFC function, it provides reliable performance and ensures energy efficiency. The built-in three-in-one dimming function allows you to easily adjust the brightness of your lights according to your needs.
The IP67 protection rating makes this LED driver suitable for use in dry, damp or wet locations without compromising its performance or safety features.
In addition to its technical specifications and certifications such as UL8750 and CSA C22.2 No.250.0-08 approval, this LED driver also comes with a warranty of up to five years for added peace of mind.
Easily installable thanks to its compact design and lightweight construction weighing only about kg , this LED driver is a versatile solution for all your Led lighting needs.
