CFL Dulux L 28W 840 HE 2GX11

Suitable for indoor Yes
SEG number 8330542
EEI - Energy LabelA
Rated lamp mercury content 2.6 mg
Base (standard designation) 2GX11
Recycling Yes
Construction wattage 28 W
Rated lamp efficacy (HF data) Under clarification by authority and standardization body
Rated lamp efficacy (standard condition) 96 lm/W
Nominal wattage 28 W
Nominal voltage 147 V
Nominal current 190 mA
Construction current 190 mA

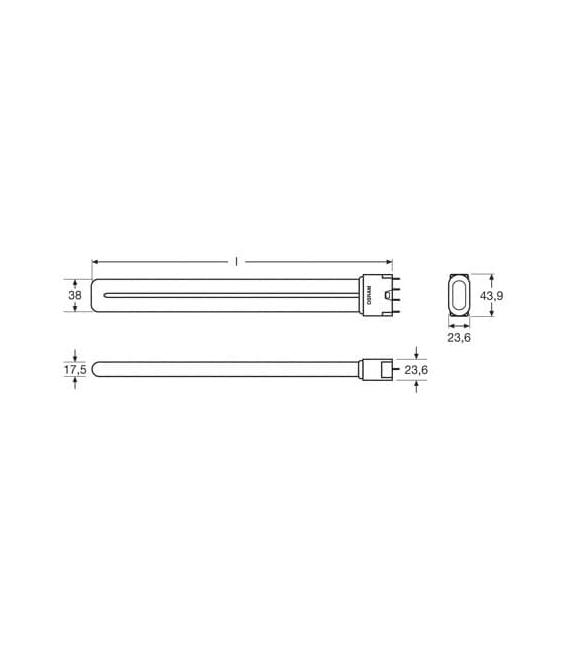

Overall length 565.50 mm
Diameter 18 mm
Length 565.50 mm
Construction length 565.50 mm
Operation mode LLMF/LSF HF
Rated lamp survival factor at 2000 h
Rated lamp survival factor at 4000 h
Rated lamp survival factor at 6000 h
Rated lamp survival factor at 8000 h
Rated lamp survival factor at 12000 h 0.95
Rated lamp survival factor at 16000 h 0.80
Rated lamp survival factor at 20000 h 0.50
Rated color rendering index Ra80-89
Luminous flux at 25 °C 2700 lm
Nominal luminous flux 2700 lm
Rated luminous flux 2700 lm
Light color 840
Rated color temperature 4000 K
Light color as per EN 12464-1 LUMILUX Cool White
Rated LLMF at 2000 h 0.90
Rated LLMF at 4000 h 0.84
Rated LLMF at 6000 h
Rated LLMF at 8000 h 0.81
Rated LLMF at 12000 h
Rated LLMF at 16000 h
Rated LLMF at 20000 h
Luminous flux at 35 °C 2800 lm
Rated ambient temp.w.max.luminous flux 35 °C
The innovative Osram Dulux L HE (High Efficiency) series offers very high luminous efficacy: 100 lm/W (at an ambient temperature of 35 °C).
A new generation of highly efficient and cost-effective luminaires can now be created.

Benefits
• Extremely efficient: 100 lm/W luminous efficacy (at an ambient temperature of 35 °C)
• Long average life: 20000 hours (with QUICKTRONIC)
• Partially dimmable
• 4 different lamp lengths/wattages
• Operated with QUICKTRONIC for T5 (QTi DALI, QTi DIM, QTi, QTP)
• Osram Dulux L HE lamps are ideal for new short-run luminaires and rectangular, square and round ceiling and wall luminaires

Applications
• Optimized for indoor lighting as maximum luminous flux is at an ambient temperature of 35 °C
• For direct and indirect lighting
• Osram Dulux L HE lamps are suitable for shop lighting, hotel and restaurant lighting, lighting for industry, trade and commerce, office lighting, public buildings
