2G11 - CFL
CFL Master PL-L 40W 830 2G11
610942 | Manufacturer: Philips | EAN: 8711500610942 | MPN: 927908208370
More info - Master PL-L 40W 830 Energy Saving Lamp Compact
Master PL-L is a medium to high-wattage linear compact fluorescent lamp, typically used for general-illumination ceiling luminaires in retail, hospitality and office applications demanding higher lighting levels. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. It is designed for operation on electromagnetic as well as electronic HF control gear and is provided with a plug-in/pull-out lamp base.
System Description High Frequency [High Frequency]
Cap-Base 2G11
Cap-Base Information 4P
Life to 50% fail Preheat EL,3h 20000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Lum Flux Rated EM 25 °C,horiz 3500 lm
Lum Flux Nominal EM 25 °C,horiz 3500 lm
Luminous Efficacy Rated HF 25 °C,hor 88 lm/W
Design Temperature 30 C
Chromaticity Coordinate X 440 -
Chromaticity Coordinate Y 405 -
Lamp Wattage 40 W
Lamp Voltage EL 25 °C 126 V
Lamp Current EL 25 °C 0.320 A
Dimmable Yes
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 2 mg
Energy consumption kWh/1000 h 44 kWh

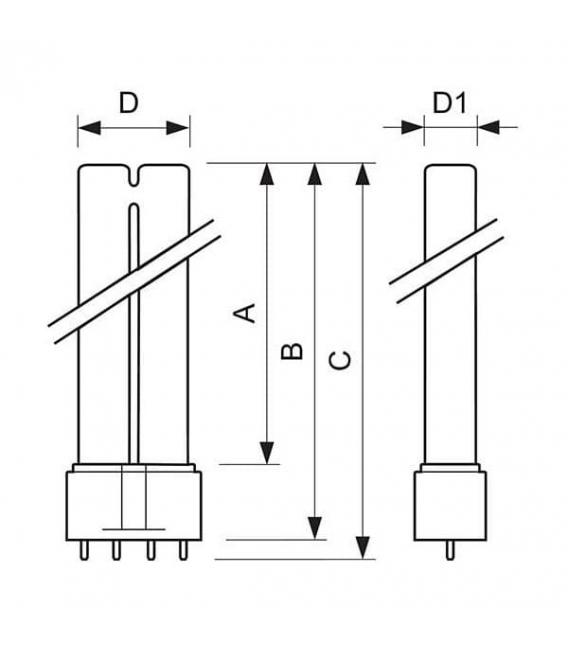

Base Face to Base Face A 509.2 (max) mm
Insertion Length B 535 (max) mm
Overall Length C 541.6 (max) mm
Diameter D 39 (max) mm
Diameter D1 18 (max) mm
Benefits
• Optimal light performance for short or long operation per switch-on
• Long life and sustainable light output
• Multiple light color choice
• Good color rendering (CRI > 80)
• Dimming possible down to 10%
Features
• 4-pin base
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications

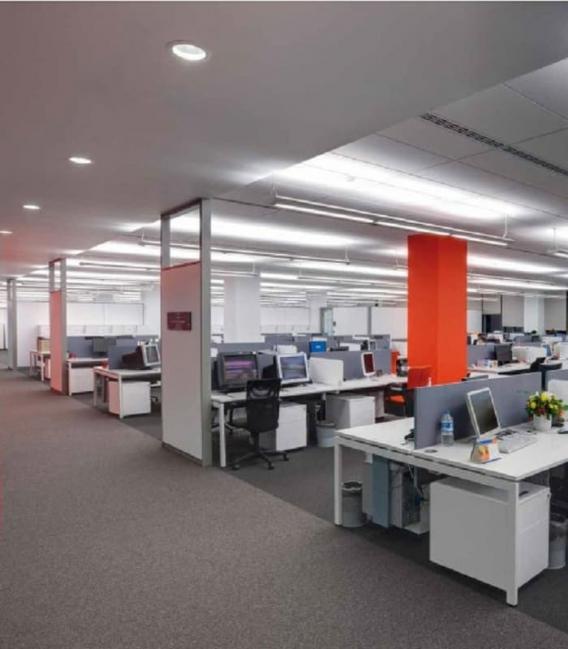

• Designed for general lighting in shops, offices, hotels and specific task lighting, as well as outdoors in residential areas and parks
