Airfield Light Bulbs
64319 A 45 15 45W PK30d
345554 | Manufacturer: Osram | EAN: 4008321345554 | MPN: 64319 A
More info - Lamp 64319 A 45 15 45W PK30d Airfield
Halogen lamp are perfect light sources for airfield lighting. Light sources for this application need to highly reliable and durable and relatively low installation costs - properties that define halogen lamp from. They provide instant and constant light output and have an impressively long life.
Nominal wattage 45 W
Nominal voltage 6.8 V
Lamp current 6.6 A
Luminous flux 800 lm

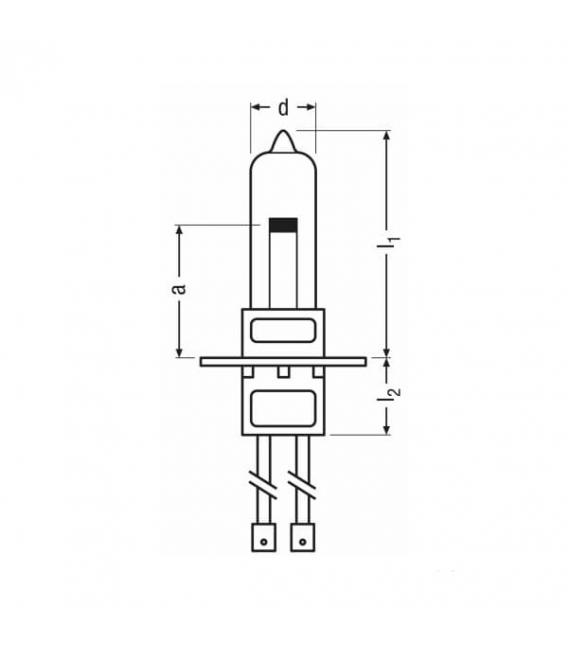

Diameter 13.5 mm
Length 50 mm
Mounting length 16 mm
Length with base excl. base pins/connection 32 mm
Light center length (LCL) 20 mm
Lifespan 1500 h
Base (standard designation) PK30d
Burning position s90
Areas of application

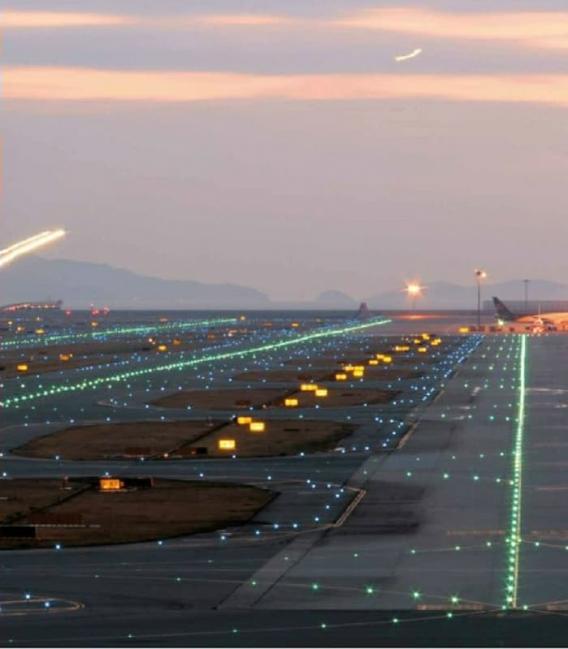

• Airfield lighting
Features
• Dimmable
• Available with connector combinations A, B, C/Z on request
• Infrared radiation output that provides light in the worst of conditions
SAFETY ADVICE
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.
