QTi 1x14 24W 220V DIM Quicktronic intelligent
0870922 | Manufacturer: Osram | EAN: 4050300870922 | MPN: QTI-1-14-24-DIM
More info - QTi 1x14 24W DIM Electronic Ballast Intelligent Control
QTi 1x14 24W 220V DIM Quicktronic intelligent is a T5 dimmable electronic control gear (ECG) for compact fluorescent lamps and T5 fluorescent lamps. With a wide operating voltage range, high efficiency, and automatic restart after lamp replacement, it's perfect for various applications such as industry, open-plan offices, corridors, storage rooms, and public buildings. Suitable for emergency installations and luminaires of protection class I. Experience the benefits of same luminous flux with direct or alternating current, perfect lamp start with motion sensors, flicker-free dimming of amalgam lamps without reduced lifespan, very low standby consumption complying with MINERGIE standard in ECGs.
Nominal voltage 220 - 240 V
Mains frequency 50 Hz/60 Hz
DC voltage 154…276 V
Operating frequency 53…120 kHz
Starting time 0.6 s

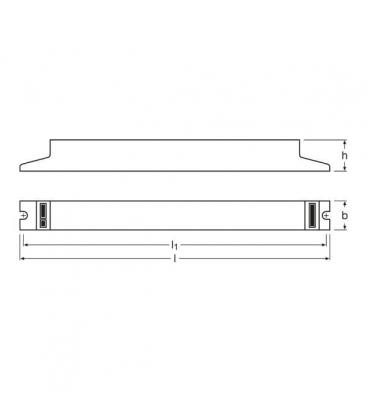

Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Wire preparation length, input side 8.0…9 mm
Wire preparation length, output side 8.0…9 mm
Ambient temperature range –10…+50 °C
Dimming interface 1…10 V
Dimming range 1…100%
Dimmable Yes
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
EEI - Energy Label A1 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Benefits
• Same luminous flux with direct and alternating current
• Perfect lamp start for applications with motion sensors
• Dimming of amalgam lamps without flickering or reduced lifespan
• Very high efficiency thanks to cut-off technology
• Automatic restart after lamp replacement
• ECGs comply with MINERGIE standard due to very low standby consumption
• Configurable emergency power characteristics
Applications
• Suitable for emergency installations
• Industry
• Open-plan offices, corridors and storage rooms
• Public buildings
• Suitable for luminaires of protection class I
