QTi 1x28 54W 220V DIM Quicktronic intelligent
0870588 | Manufacturer: Osram | EAN: 4050300870588 | MPN: QTI-1-28-54-DIM
More info - QTi 1x28 54W DIM Electronic Ballast
The QUICKTRONIC INTELLIGENT DIM T5 is a dimmable 1-10V ECG for compact fluorescent lamp and T5 fluorescent lamps . With a nominal voltage of 220-240V, it offers the perfect lamp start for applications with motion sensors and ensures the same luminous flux with direct and alternating current. Its high efficiency, automatic restart after lamp replacement, and compliance with MINERGIE standard make it an ideal choice for emergency installations, industry settings, open-plan offices, corridors, storage rooms, and public buildings. Suitable for fixtures with protection class I.
Nominal voltage 220 - 240 V
Mains frequency 50 Hz/60 Hz
DC voltage 154…276 V
Operating frequency 44…120 kHz
Starting time 0.6 s

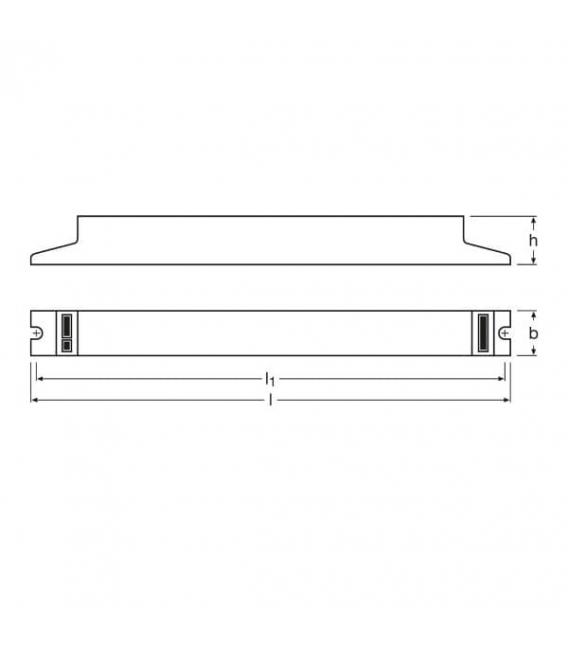

Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Wire preparation length, input side 8.0…9 mm
Wire preparation length, output side 8.0…9 mm
Ambient temperature range –10…+50 °C
Dimming interface 1…10 V
Dimming range 1…100%
Dimmable Yes
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
EEI - Energy Label A1 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Benefits
• Same luminous flux with direct and alternating current
• Perfect lamp start for applications with motion sensors
• Dimming of amalgam lamps without flickering or reduced lifespan
• Very high efficiency thanks to cut-off technology
• Automatic restart after lamp replacement
• ECGs comply with MINERGIE standard due to very low standby consumption
• Configurable emergency power characteristics
Applications
• Suitable for emergency installations
• Industry
• Open-plan offices, corridors and storage rooms
• Public buildings
• Suitable for luminaires of protection class I
