QTi 3x18W 220V DIM Quicktronic intelligent
1069931 | Manufacturer: Osram | EAN: 4008321069931 | MPN: QTI-3-18-DIM
More info - QTi 3x18W DIM Electronic Ballast Intelligent Control
QTi 3x18W 220V DIM Quicktronic intelligent is a dimmable electronic control gear (ECG) designed for compact fluorescent lamps and T8 fluorescent lamps. With a wide operating voltage range, quick starting time, and excellent dimming capabilities, this product ensures optimal lighting performance. Its benefits include consistent luminous flux with both direct and alternating current, flicker-free dimming of amalgam lamps, high efficiency due to cut-off technology, automatic restart after lamp replacement, low standby consumption complying with MINERGIE standard, and configurable emergency power characteristics. Suitable for applications such as emergency lighting systems and protection class I luminaires.
Nominal voltage 220 - 240 V
Mains frequency 50 Hz/60 Hz
DC voltage 154…276 V
Operating frequency 40…100 kHz
Starting time 0.6 s

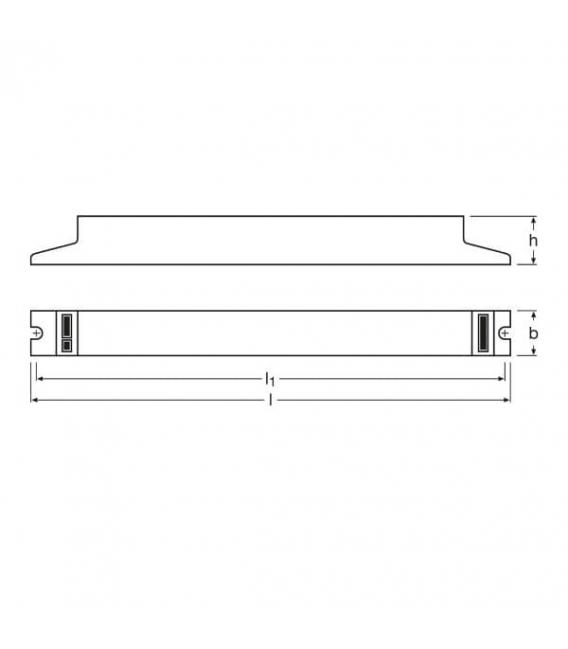

Length 360 mm
Width 40 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Wire preparation length, input side 8.0…9 mm
Wire preparation length, output side 8.0…9 mm
Ambient temperature range –20…+50 °C
Dimming interface 1…10 V
Dimming range 1…100%
Dimmable Yes
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / E1 approval / VDE-EMC
EEI - Energy Label A1 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to IEC 61000 - 3-2/acc. to EN 61547
Benefits
• Same luminous flux with direct and alternating current
• Perfect lamp start for applications with motion sensors
• Dimming of amalgam lamps without flickering or reduced lifespan
• Very high efficiency thanks to cut-off technology
• Automatic restart after lamp replacement
• ECGs comply with MINERGIE standard due to very low standby consumption
• Configurable emergency power characteristics
Applications
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Suitable for luminaires of protection class I
