Ballasts, Electronic, 1-10V
QTi 4x18W 220V DIM Quicktronic intelligent
1061070012 | Manufacturer: Osram | EAN: 4008321070012 | MPN: QTI-4-18-DIM
More info - QTi 4x18W 220V DIM Electronic Ballast
QTi 4x18W 220V DIM Quicktronic intelligent is a dimmable electronic control gear (ECG) designed for compact fluorescent lamps and T8 fluorescent lamps. With a wide operating voltage range, high efficiency, and automatic restart after lamp replacement, it ensures reliable performance. Perfect for emergency lighting systems and luminaires of protection class I. Experience flicker-free dimming and the same luminous flux with both direct and alternating current. Upgrade your lighting setup with this intelligent solution that complies with MINERGIE standards.
Nominal voltage 220 - 240 V
Mains frequency 50 Hz/60 Hz
DC voltage 154…276 V
Operating frequency 40…100 kHz
Starting time 0.6 s

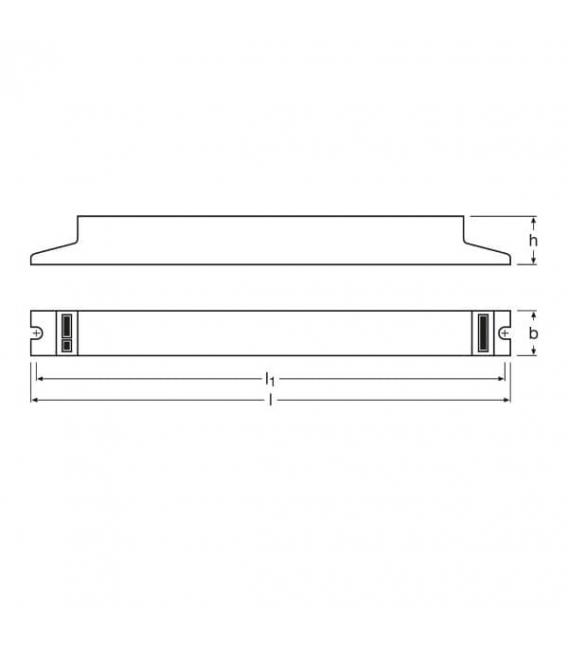

Length 360 mm
Width 40 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Wire preparation length, input side 8.0…9 mm
Wire preparation length, output side 8.0…9 mm
Ambient temperature range –20…+50 °C
Dimming interface 1…10 V
Dimming range 1…100%
Dimmable Yes
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / E1 approval / VDE-EMC
EEI - Energy Label A1 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to IEC 61000 - 3-2/acc. to EN 61547
Benefits
• Same luminous flux with direct and alternating current
• Perfect lamp start for applications with motion sensors
• Dimming of amalgam lamps without flickering or reduced lifespan
• Very high efficiency thanks to cut-off technology
• Automatic restart after lamp replacement
• ECGs comply with MINERGIE standard due to very low standby consumption
• Configurable emergency power characteristics
Applications
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Suitable for luminaires of protection class I
