QTi T-E 1x18 57W 220V DIM Cfl Quicktronic intelligent
1060860 | Manufacturer: Osram | EAN: 4008321060860 | MPN: QT-1-18-57-DIM-CFL
More info - QTi T-E 1x18 57W DIM Electronic Ballast
QTi T-E 1x18 57W 220V DIM Cfl Quicktronic intelligent: QUICKTRONIC INTELLIGENT DIM is a dimmable electronic control gear (ECG) designed for compact fluorescent lamps and fluorescent lamps. With a voltage range of 220-240V, it offers a starting time of just 0.6 seconds and a dimming range of 3-100%. Its benefits include same luminous flux with direct and alternating current, perfect lamp start for motion sensor applications, and high efficiency thanks to cut-off technology. Suitable for use in emergency lighting systems as per EN50172/DIN VDE0108-100 standards.
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
DC voltage 154…276 V
Operating frequency 42…140 kHz
Max. no. of ECGs on circuit breaker 10 A 12
Max. no. of ECGs on circuit breaker 16 A 19
Starting time 0.6 s

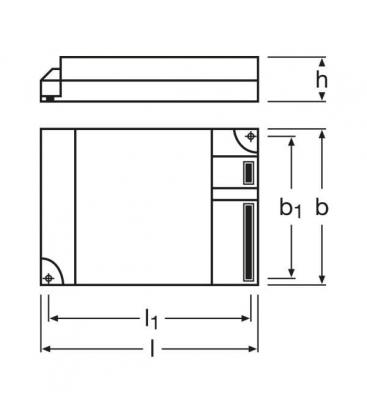

Length 123 mm
Width 79 mm
Height 33 mm
Mounting hole spacing, length 129.5 mm
Product weight 233.50 g
Wire preparation length, input side 8.5…9.5 mm
Wire preparation length, output side 8.5…9.5 mm
Ambient temperature range –10…+50 °C
Optional cable clamp, see chapter ECG mountings - cable clamp
Dimming interface 1…10 V
Dimming range 3…100%
Dimmable Yes
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
EEI - Energy Label A1 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Benefits
• Same luminous flux with direct and alternating current
• Perfect lamp start for applications with motion sensors
• Dimming of amalgam lamps without flickering or reduced lifespan
• Very high efficiency thanks to cut-off technology
• Automatic restart after lamp replacement
• ECGs comply with MINERGIE standard due to very low standby consumption
• Configurable emergency power characteristics
Applications
• Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
• Suitable for luminaires of protection class I
