ELXd 224.608 2x28W 2x14W 2x24W TC-F L T5 dimm
188337 | Manufacturer: Vossloh Schwabe | EAN: 4014364456911 | MPN: 188337
More info - ELXd 224.608 Electronic Ballast T5 Dimm 1-10V
The ELXd 224.608 is an electronic dimmable ballast designed for TC-F/-L and T5 lamps. With a power factor of >0.95, it regulates electrical current for smooth dimming control. Its metal casing, RFI suppression, and IP20 protection make it ideal for high switching frequency lighting systems. This ballast supports 2x28W compact fluorescent lamps (TC-F/-L) and 2x14W/2x24W T5 lamps (G5). Compatible with open- or closed-loop control units, it operates at AC voltage of 220-240V and frequency of 50-60Hz in ambient temperatures ranging from 10 to 50°C.
Electronic built-in ballasts
Casing: metal
Power factor: > 0.95 at 100% operation
DC voltage: for operation: 154–276 V, for ignition: 198 - 264 V
Push-in terminals: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
RFI-suppressed
For luminaires of protection class I
Degree of protection: IP20

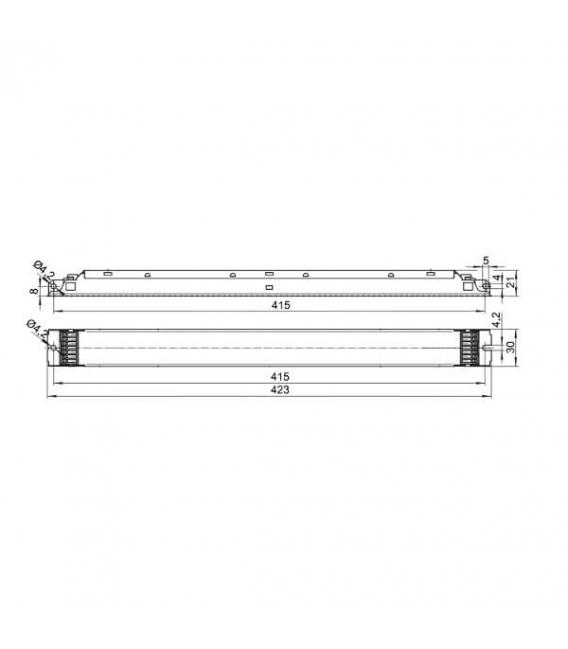

Fixing holes for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5/day)
EOL shut down approved acc. to EN 61347 Test 2
ELXd - Dimmable 1–10 V for TC-F/-L and T5 lamps
Control voltage: DC 1–10 V acc. to EN 60929 with earth leakage current 0.5 mA (protected if connected to mains voltage)
For use with open- or closed-loop control units
Lamp type: TC-F/-L, T5
Output [W]: 2 × 24 for compact fluorescent lamps TC-F/-L (2G10/2G11)
Output [W]: 2 × 14, 2 × 24 for T5 lamps (G5)
Lamp number: 2
Voltage AC [V]: 220 - 240
Frequency [Hz]: 50 - 60
Ambient temperature ( °C) 10…50
