ELXd 124.607 1x14W 1x24W TC-F L T5 dimm
188336 | Manufacturer: Vossloh Schwabe | EAN: 4014364456904 | MPN: 188336
More info - ELXd 124.607 Electronic Ballast 1-10V Dimmable T5
The ELXd 124.607 1x14W 1x24W TC-F L T5 dimm is an electronic built-in ballast with a metal casing. It offers a dimming range of approximately 1-100% and has a power factor greater than 0.95 at full operation. With RFI suppression and IP20 protection, it is suitable for luminaires of protection class I. This ballast is compatible with TC-F/-L and T5 lamps, providing outputs of 1x24W for compact fluorescent lamps and 1x14W or 1x24W for fluorescent lamps. Its control voltage ranges from DC 1-10V, making it ideal for use with open- or closed-loop control units in lighting systems with high switching frequency.
Electronic built-in ballast
Casing: metal
Dimming range: approx. 1–100% of lamp power
Power factor: > 0.95 at 100% operation
DC voltage: for operation: 154–276 V, for ignition: 198 - 264 V
Push-in terminals: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
RFI-suppressed
For luminaires of protection class I
Degree of protection: IP20

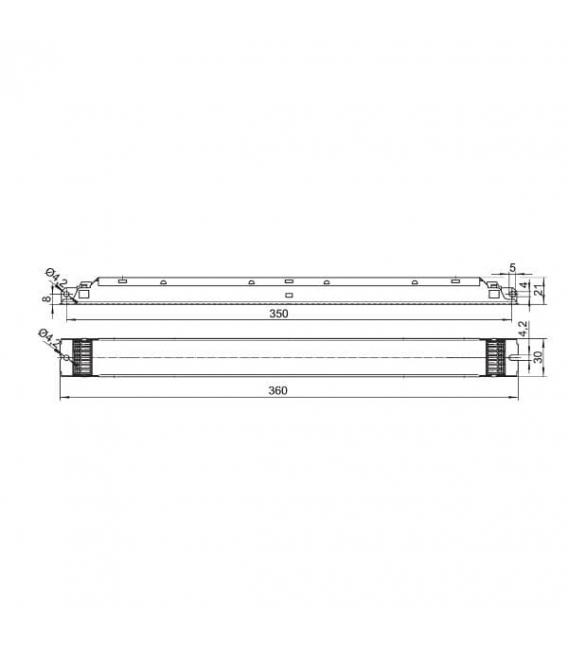

Fixing holes for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5/day)
EOL shut down approved acc. to EN 61347 Test 2
ELXd - Dimmable 1–10 V
Control voltage: DC 1–10 V acc. to EN 60929 with earth leakage current 0.5 mA (protected if connected to mains voltage)
For use with open- or closed-loop control units
Lamp type: TC-F/-L, T5
Output [W]: 1 × 24 for compact fluorescent lamps TC-F/-L (2G10/2G11)
Output [W]: 1 × 14, 1 × 24 for fluorescent lamps T5 (G5)
Lamp number: 1
Voltage AC [V]: 220 - 240
Frequency [Hz]: 50 - 60
Ambient temperature ( °C) 10…50
