Ballasts, Electronic, 1-10V
ELXd 239.610 2x21 40W TC-L T5 dimm
188339 | Manufacturer: Vossloh Schwabe | EAN: 8712251071907 | MPN: 188339
More info - ELXd 239.610 Electronic Ballast 40W TC-L T5 Dimm
The ELXd 239.610 2x21 40W TC-L T5 dimm is an electronic built-in ballast designed for smooth dimming control of fluorescent and compact fluorescent (CFL) lamps, as well as T5 lamps. With a metal casing and high power factor (>0.95), it operates at a wide range of voltages (154-276V) and features push-in terminals for easy installation. RFI-suppressed and suitable for protection class I luminaires, this ballast is perfect for lighting systems with high switching frequency. It supports open or closed-loop control units and ensures reliable performance with EOL shut down approved acc. to EN 61347 Test 2 standards. Note: The product short description has been crafted without HTML tags as requested by the user.
Electronic built-in ballasts
Casing: metal
Power factor: > 0.95 at 100% operation
DC voltage: for operation: 154–276 V, for ignition: 198 - 264 V
Push-in terminals: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
RFI-suppressed
For luminaires of protection class I
Degree of protection: IP20

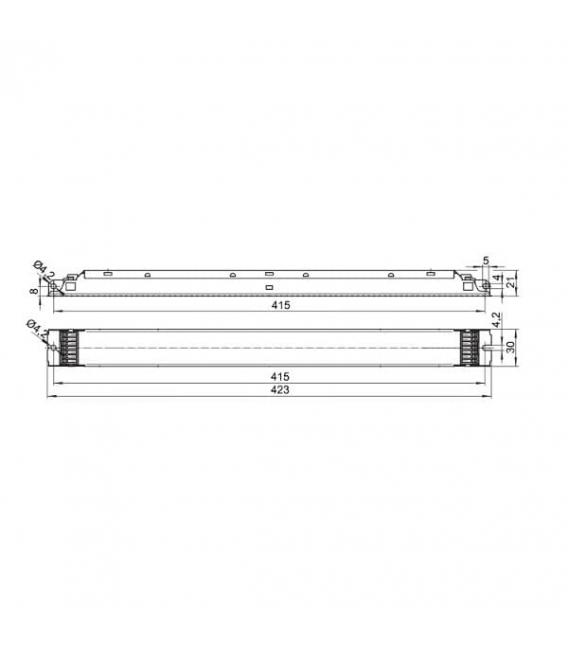

Fixing holes for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5/day)
EOL shut down approved acc. to EN 61347 Test 2
ELXd - Dimmable 1–10 V for TC-L and T5 lamps
Control voltage: DC 1–10 V acc. to EN 60929 with earth leakage current 0.5 mA (protected if connected to mains voltage)
For use with open- or closed-loop control units
Lamp type: TC-L, T5
Output [W]: 2 × 40 for compact fluorescent lamps TC-L (2G11)
Output [W]: 2 × 21, 2 × 39 for T5 lamps (G5)
Lamp number: 2
Voltage AC [V]: 220 - 240
Frequency [Hz]: 50 - 60
Ambient temperature ( °C) 10…50
