ELXd 280.630 2x35 80W T5 dimm
188604 | Manufacturer: Vossloh Schwabe | EAN: 8712251108009 | MPN: 188604
More info - ELXd 280.630 Electronic Ballast Dimmable 1-10V
The ELXd 280.630 2x35 80W T5 dimm is an electronic built-in ballast designed for T5 lamps. With a metal casing and RFI suppression, it offers reliable performance. Its power factor of >0.95 ensures efficient operation, while the control voltage of DC 1-10V allows for smooth dimming control. Suitable for use with open or closed-loop control units, this ballast is perfect for lighting systems with high switching frequency. Experience superior lighting control with the ELXd 280.630 2x35 80W T5 dimm.
Electronic built-in ballasts
Casing: metal
Power factor: > 0.95 at 100% operation
DC voltage: for operation: 154–276 V, for ignition: 198 - 264 V
Push-in terminals: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
RFI-suppressed
For luminaires of protection class I
Degree of protection: IP20

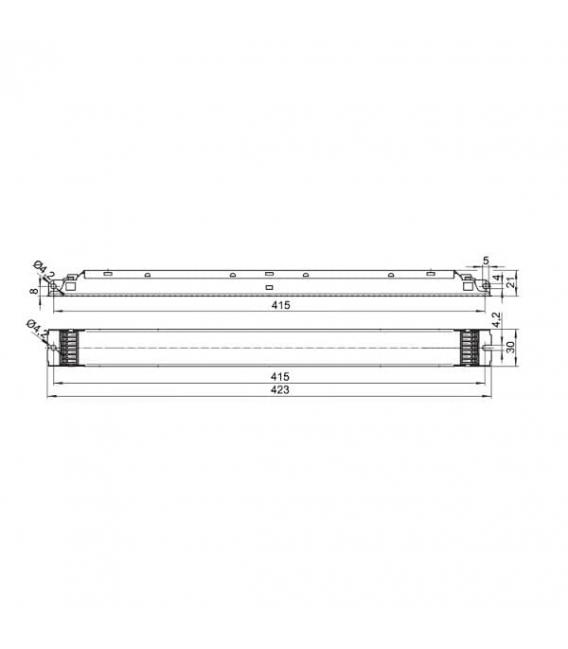

Fixing holes for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5/day)
EOL shut down approved acc. to EN 61347 Test 2
ELXd - Dimmable 1–10 V for T5 lamps
Control voltage: DC 1–10 V acc. to EN 60929 with earth leakage current 0.5 mA (protected if connected to mains voltage)
For use with open- or closed-loop control units
Lamp type: T5
Output [W]: 2 × 35, 2 × 49, 2 × 80 for T5 lamps (G5)
Lamp number: 2
Voltage AC [V]: 220 - 240
Frequency [Hz]: 50 - 60
Ambient temperature ( °C) 10…50
