ELXd 418.625 4x18W T8 dimm
188599 | Manufacturer: Vossloh Schwabe | EAN: 4014364858388 | MPN: 188599
More info - ELXd 418.625 Electronic Ballast Dimmable 1-10V
The ELXd 418.625 4x18W T8 dimm is an electronic built-in ballast with a metal casing. It offers a dimming range of approximately 1-100% and has a power factor greater than 0.95 at full operation. With RFI suppression and IP20 protection, it is suitable for luminaires of protection class I. This ballast is designed for use with T8 fluorescent lamps (G13) and can handle up to four lamps with an output of 18W each. Its control voltage ranges from DC 1-10V, making it compatible with open or closed-loop control units.
Electronic built-in ballast
Casing: metal
Dimming range: approx. 1–100% of lamp power
Power factor: > 0.95 at 100% operation
DC voltage: for operation: 154–276 V, for ignition: 198 - 264 V
Push-in terminals: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
RFI-suppressed
For luminaires of protection class I
Degree of protection: IP20

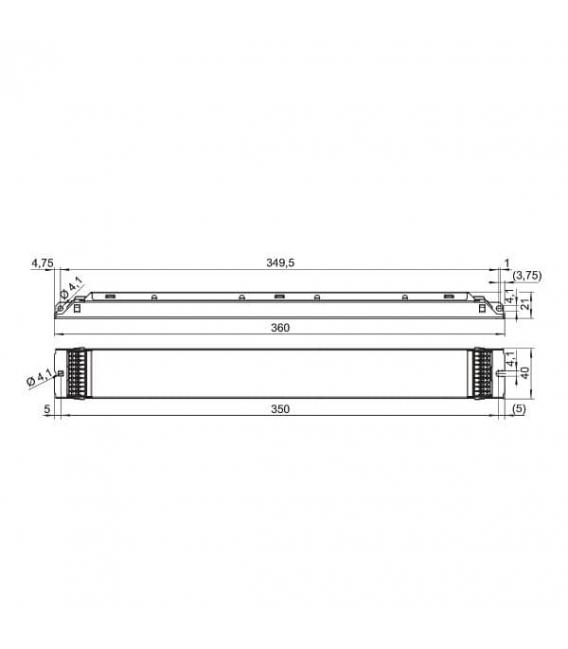

Fixing holes for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5/day)
EOL shut down approved acc. to EN 61347 Test 2
ELXd - Dimmable 1–10 V
Control voltage: DC 1–10 V acc. to EN 60929 with earth leakage current 0.5 mA (protected if connected to mains voltage)
For use with open- or closed-loop control units
Lamp type: T8
Output [W]: 4 × 18 for fluorescent lamps T8 (G13)
Lamp number: 4
Voltage AC [V]: 220 - 240
Frequency [Hz]: 50 - 60
Ambient temperature ( °C) 10…50
