Ballasts, Electronic, DALI
DALI ELXd 224.601 2x14 24W T5 TC-F L
188330 | Manufacturer: Vossloh Schwabe | EAN: 4014364456843 | MPN: 188330
More info - Electronic Dimmable DALI Ballast ELXd 224.601 2x14 24W T5 TC-F L
The ELXd 224.601 is a powerful and versatile electronic built-in ballast for T5 and TC-F/-L lamps. With a dimming range of 1-100% and a power factor greater than 0.95, it offers efficient lighting control. Its RFI-suppressed design ensures reliable performance, while its low-power design minimizes standby power consumption. This ballast is suitable for luminaires of protection class I and has an IP20 degree of protection. It supports high switching frequency lighting systems and complies with the DALI-standard for advanced functionality. Perfect for professional lighting applications!
Electronic built-in ballast
Casing: metal
Dimming range: approx. 1–100% of lamp power
Power factor: > 0.95 at 100% operation
DC voltage: for operation: 154–276 V, for ignition: 198 - 264 V
Push-in terminals with lever opener: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
RFI-suppressed
For luminaires of protection class I
Degree of protection: IP20

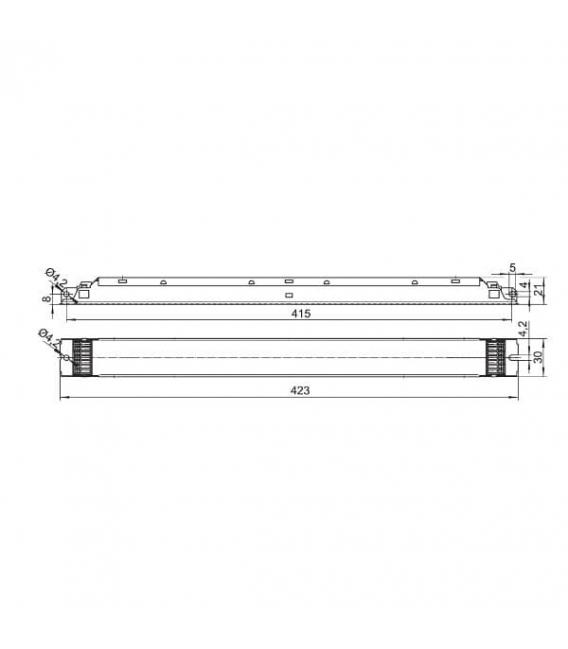

Fixing holes for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5/day)
EOL shut down approved acc. to EN 61347 Test 2
Complete implementation of the DALI-standard: addressable, memory store for scenes and groups, revertive information communication, physical and RND-selection, standardized lamp characteristic
Low-power design ensures very low standby power consumption
Lamp type: T5, TC-F/-L
Output [W]: 2 × 14, 2 × 24 for fluorescent lamps T5 (G5)
Output [W]: 2 × 24 for compact fluorescent lamps TC-F/-L (2G10/2G11)
Lamp number: 2
Voltage AC [V]: 220 - 240
Frequency [Hz]: 50 - 60
Ambient temperature ( °C) 10…50
