Ballasts, Electronic, DALI
DALI ELXd 158.619 1x58W T8
188348 | Manufacturer: Vossloh Schwabe | EAN: 4014364457024 | MPN: 188348
More info - Electronic Dimmable DALI Ballast ELXd 158.619 1x58W T8
The ELXd 158.619 1x58W T8 DALI is a high-quality electronic built-in ballast with a metal casing. It offers a dimming range of approximately 1-100% and has a power factor greater than 0.95 at full operation. With push-in terminals and IDC terminals for easy wiring, this ballast is perfect for luminaires of protection class I. Its low-power design ensures minimal standby power consumption, making it an energy-efficient choice. Designed for T8 fluorescent lamps , this ballast operates at voltage AC of 220-240V and frequency of 50-60Hz in ambient temperatures ranging from 10 to 50°C.
Electronic built-in ballast
Casing: metal
Dimming range: approx. 1–100% of lamp power
Power factor: > 0.95 at 100% operation
DC voltage: for operation: 154–276 V, for ignition: 198 - 264 V
Push-in terminals with lever opener: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
RFI-suppressed
For luminaires of protection class I
Degree of protection: IP20

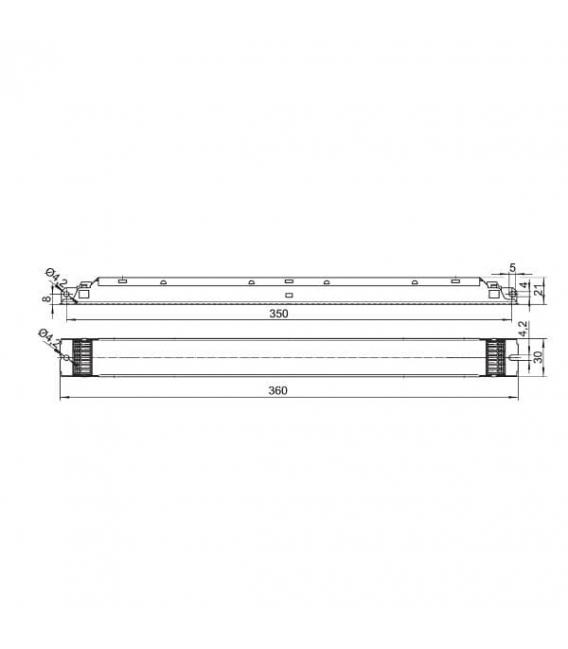

Fixing holes for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5/day)
EOL shut down approved acc. to EN 61347 Test 2
Complete implementation of the DALI-standard: addressable, memory store for scenes and groups, revertive information communication, physical and RND-selection, standardized lamp characteristic
Low-power design ensures very low standby power consumption
Lamp type: T8
Output [W]: 58 for fluorescent lamps T8 (G13)
Lamp number: 1
Voltage AC [V]: 220 - 240
Frequency [Hz]: 50 - 60
Ambient temperature ( °C) 10…50
