Ballasts, Electronic, HID
0881854 | Manufacturer: Philips | EAN: 8711500881854 | MPN: 913700656466
Product is out of production!
The HID PV C 2x35 I 220V CDM Soft start is a cost-effective solution for accent and decorative lighting in shops, public spaces, lobbies, and offices. With minimal lamp power tolerance and increased lamp life by up to 30% for CDM lamps, this product offers optimal performance. It features a single gear for two lamps, low energy losses, end-of-life detection, and high temperature resistance. Suitable for indoor use only.
Design SOFT START
Rated Lamptype CDM
Rated Number of Lamps 2 piece
Rated Ballast-Lamp Power 35
Line Voltage 220 - 240 V
Line Frequency 50 - 60 Hz
Housing /I
Suitable for Outdoor use No
Automatic restart Yes
Ignition switch-off time 20 min
Ignition Voltage 4.5 (max)kV
Operating frequency 0.14 kHz
Mains voltage safety (AC) -18% /+10%
Mains voltage performance (AC) -10% /+6%
Inrush current Peak 33 (max) A
Inrush current Width 1.85ms
Earth leakage current 0.5 (max) mA
Power losses gear 8 W
Constant wattage deviation -3% /+3%
PowerFactor 100% output power 0.95 -
Overvoltage protection 320 V 48 hr
Max ballast on MCB(16 A type B) 20 ×
Hum and Noise level Inaudible
Cable-Cap outputwires mutual 100 pF
Connector type Insert
Max. cable length Device/Lamp 1.5m
Striplength 10 - 11 mm
Wcs Ballast contacts 0.50-2.50 mm²
Active temperature protection Yes
F-marking Yes
T-case life 75 C
T-case maximum 80 (max) °C
T-ambient –20 (min), 55 (max) °C
T-storage -25 (min), 80 (max) °C

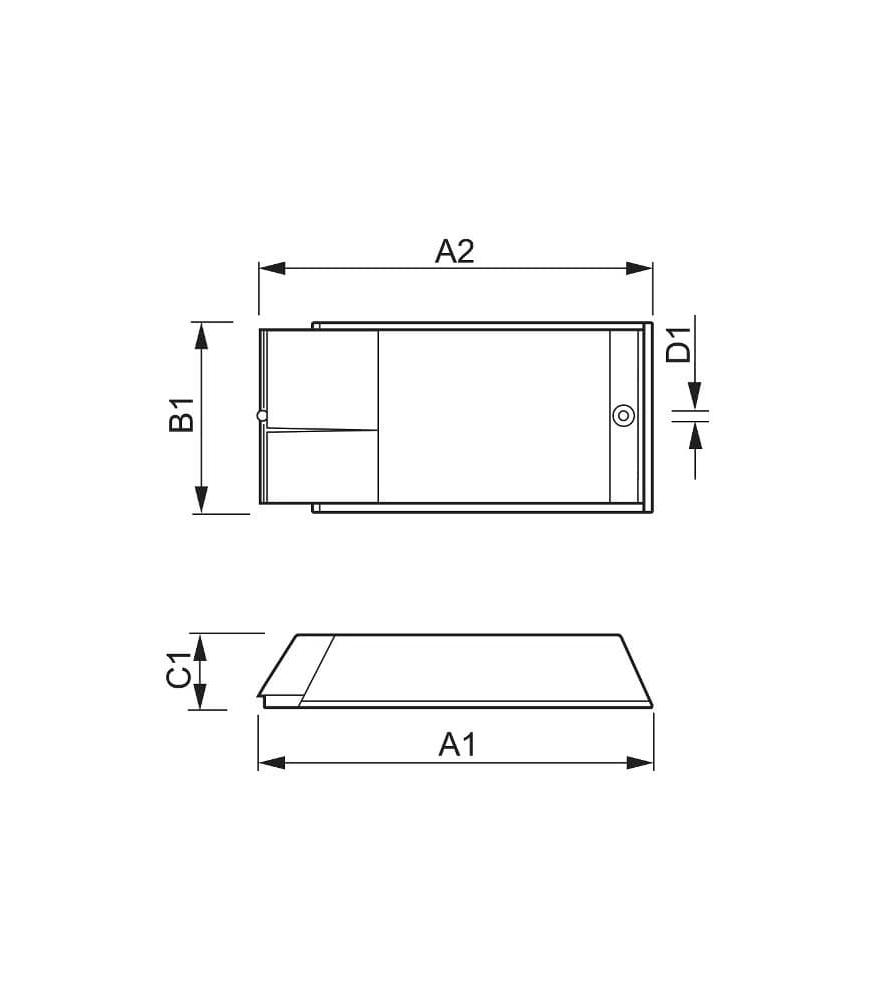

Length A1 245 mm
Fixing Hole Distance Length A2 226 mm
Width B1 94 mm
Height C1 35 mm
Fixing Hole Diameter D1 4.5 mm
PrimaVision Twin (35 W and 70W) for CDM - The cost-effective solution
• Cost-effective, plus design flexibility
• Optimal lamp performance thanks to minimal lamp power tolerance
• Lamp life increased by up to 30% for CDM lamps
Features
• Single gear for two lamps
• Loop Through feature (in independent version)
• Minimal lamp power spread
• Low gear energy losses
• Lamp end-of-life detection
• High Tambient and Tcase temperatures
• Long lifetime of 40000 hours
Applications
• 35 and 70W: accent and decorative lighting for shops, public spaces, lobbies and offices
• Suitable for indoor use only
