Ballasts, electronic, QTP-DL
QTP-DL Ballasts 2x36 40W 230-240V Quicktronic Professional
117922 | Manufacturer: Osram | EAN: 4008321117922 | MPN: QTP-DL-2-36
More info - QTP-DL 2x36 40W Ballast Professional Electronic Solution
The QTP dL 2x36 40W 230-240V Quicktronic professional is a high-quality electronic control gear that ensures optimal performance for your lighting fixtures. With an input voltage range of AC 198-264V and DC 154-276V, it offers versatility and reliability. Its long lamp life, automatic restart after replacement, and perfect lamp start make it ideal for applications with motion sensors. VDE/VDE EMC certified and highly energy-efficient, this product is suitable for emergency lighting systems, open-plan offices, corridors, storage rooms, and public buildings.
Input voltage AC 198 - 264 V
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage DC 154…276 V
Operating frequency 45-50 kHz
Max. ECG no. on circuit breaker 10 A (B) 12
Max. ECG no. on circuit breaker 16 A (B) 19
Inrush current 23A
Starting time 1s

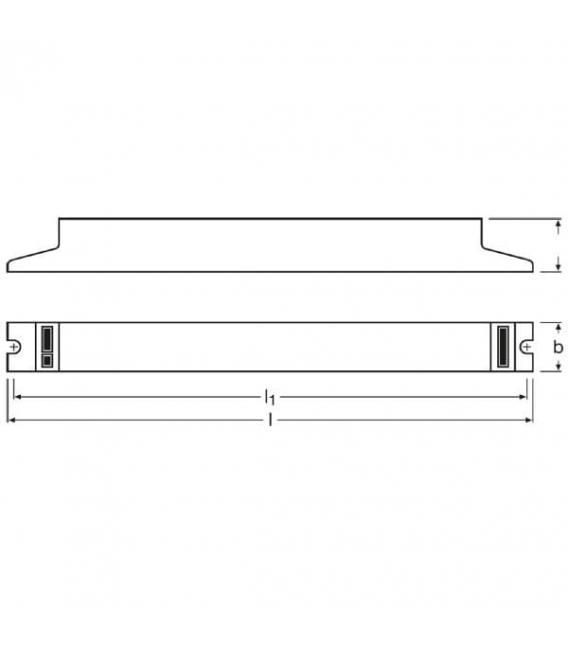

Length 280 mm
Width 40 mm
Height 28 mm
Mounting hole spacing, length 270 mm
Ambient temperature range –20…+50 °C
ECG lifetime 50000 h
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / GOST / RCM
EEI - Energy Label A2
Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015: 2006 + A1: 2007/Acc. to EN 61000 - 3-2/Acc. to EN 61547
Protection class I
Type of protection IP20
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology
Areas of application
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Open-plan offices, corridors and storage rooms
• Public buildings
• Suitable for luminaires of protection classes I and II
