QT FIT5 2x14 35W 220V Quicktronic
971258 | Manufacturer: Osram | EAN: 4008321971258 | MPN: QT-FIT5-2-14-35
More info - QT FIT5 2x14 35W Electronic Ballast Efficient
QT FIT5 2x14 35W 220V Quicktronic - High-performance ECG for T5 /16 mm lamps. Long lamp life, automatic restart after replacement, and perfect start with motion sensors. VDE/VDE EMC certified system ensures safety and energy efficiency. Ideal for open-plan offices, public buildings, strip lighting, and modernizing existing systems. Suitable for emergency lighting (DC operation) and fixtures of protection class I. Upgrade your lighting experience now!
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage DC 198 - 264 V
Operating frequency 40-50 kHz
Starting time 2s

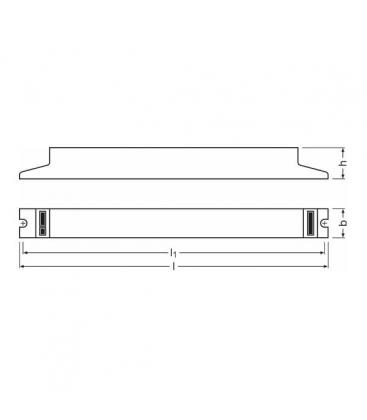

Length 280 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 270 mm
Cable cross-section, output side 0.5-1.5 mm²
Cable cross-section, input side 0.5-1.5 mm²
Ambient temperature range –15…+50 °C
Permitted rel. humidity during operation 5…85%
ECG lifetime 50000 h
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / ENEC 10 / VDE-EMC
EEI - Energy Label A2
Standards Acc. to EN 61547/IEC 61547/Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 61000 - 3-2/IEC 61000 - 3-2/Acc. to EN 55015: 2006 + A1: 2007 + A2: 2009
Protection class I
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology
Areas of application
• Open-plan offices, corridors and storage rooms
• Public buildings
• Strip lighting
• Suitable for emergency lighting (DC operation)
• Suitable for luminaires of protection class I
• Modernization of existing systems
