HF Pi 1 14 21 24 39 TL5 EII 220V
914941 | Manufacturer: Philips | EAN: 8711500914941 | MPN: 913700624066
More info - HF Pi 1 14 21 24 39 TL5 EII Electronic Ballast
The HF-Performer Intelligent is a slim and lightweight high-frequency electronic ballast that allows for easy exchange of TL5 HE and HO lamps of the same length, providing maximum flexibility in luminaire design. With automatic lamp recognition and robust design, it offers a lifetime of 100,000 hours at Ta=50˚C. Suitable for various applications including office buildings, hospitals, supermarkets, and industrial premises. Experience constant light with active power factor correction and flicker-free start-up.
Application code EII
Rated Lamptype TL5
Rated Number of Lamps 1 piece
Rated Ballast-Lamp Power 14-39
Line Voltage 220 - 240 V
Line Frequency 50 - 60 Hz
Housing L 360 × 30 × 22
Energy Efficiency Index A2 BAT
Lifetime 90% surv.@Tcaselife 50000 h
Ignition Method Warm Start
Automatic restart Yes
Ignition time 5 (max) s
Mains voltage safety (AC) –10% /+10%
Mains voltage performance (AC) -8% /+6%
Inrush current Peak 20 (max) A
Inrush current Width 0.35ms
Earth leakage current 0.5 (max) mA
Power losses gear 1.9-2.5 W
Constant wattage deviation -2% /+2%
Ballast Lumen Factor 1
Battery voltage running lamps 198-276
Max ballast on MCB(16 A type B) 12 ×
Crestfactor 1.7 (max) -
Hum and Noise level Inaudible
Cable-Cap output wires to earth 70 pF
Cable-Cap output wires mutual 70 pF
Conn.type input terminals Insert
Conn.type output terminals Insert
Max. cable length Device/Lamp 2 m
Max. cable length Hot Wires 0.75m
Striplength 8.0-9 mm
Wcs Input terminals 0.50 - 1 mm²
Wcs Output terminals 0.50 - 1 mm²
Power Loss on TL5 HO 2.2/2.4
Lamp Power on TL5 HO 24.3/37.5
System Power on TL5 HO 26.5/39.9
Rated Lamp Power on TL5 HO 24/39 W
Rated Lamp Power on TL5 HE 14/21 W
System Power on TL5 HE 16.6/23.6 W
Lamp Power on TL5 HE 14.7/212 W
Power Loss on TL5 HE 1.9/2.4 W
T-case life 75 C
T-case maximum 75 (max) °C
T-ignition -25 (min), 50 (max) °C
T-ambient -25 (min), 50 (max) °C
T-storage -25 (min), 80 (max) °C

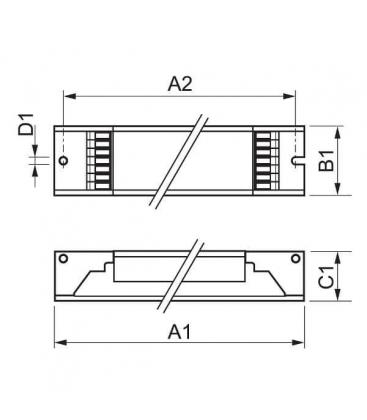

Length A1 360 mm
Fixing Hole Distance Length A2 350 mm
Width B1 30 mm
Height C1 22 mm
Fixing Hole Diameter D1 4.2 mm
Approval marks ENEC / VDE-EMV
CE marking Yes
Temperature marking [Yes]
Emergency standard IEC 60598-2-22
For flexibility in luminaire design
• HF-Pi offers the flexibility of a simplified product portfolio. TL5 HO/HE lamps can be exchanged, reducing the cost of logistics throughout the value chain
• Suitable for luminaires in protection class I and, after testing, class II. Also suitable for emergency lighting luminaires in accordance with IEC/EN 60598-2-22 and VDE 0108
• The universal connector Wago 251 offers the flexibility for horizontal-manual or push-in robot wiring or vertical ALF-robot wiring
Features
• Unique “intelligent” technology, automatic lamp recognition
• Robust design for 100000 hours lifetime at Ta=50˚C and over 100000 on/off switching operations on one lamp
• Protected against excessive mains voltage and incorrect connections up to 400 V AC
• Programmed, flicker-free, pre-heated start (< 1s) which allows the lamp to be switched on and off without reducing useful lamp life
• Active power factor correction to ensure constant light, irrespective of mains-voltage fluctuations
Applications
• Ideal for applications where a high level of energy efficiency and switching is required:
• Used with movement-detection control systems like Philips OccuPlus
• Indoor applications such as office buildings, hospitals, supermarkets, department stores and schools
• In class I outdoor applications, e.g. industrial premises and parking lots
