HF M red 109 SH TL PL-S 230 240V
931429 | Manufacturer: Philips | EAN: 8711500931429 | MPN: 913700422866
More info - HF M red 109 SH TL PL-S Electronic Ballast
The HF-Matchbox Red is an affordable, reliable, and compact high-frequency ballast . With a robust design and meeting international safety standards, it has an energy efficiency index (CELMA EEI) of A2. Perfect for indoor applications like spotlights and downlights, this ballast can be operated with movement-detection control systems. Its automatic restart feature ensures hassle-free re-lamping, making it suitable for use in class I or class II luminaires. Upgrade your lighting system with the HF-M Red 109 SH TL PL-S 230 240V ballast.
Lamp Type TL/PL-S
Number of Lamps 1 piece/unit
Number of Products on MCB (16 A Type B) 159
Automatic Restart Yes
Input Voltage 230 - 240 V
Input Frequency 50 - 60 Hz
Power Factor 100% Load 0.64
Ignition Time (Max) 0.45 s
Mains Voltage Performance (AC) -8%…+6%
Mains Voltage Safety (AC) –10%…+10%
Power Losses 1.7 W

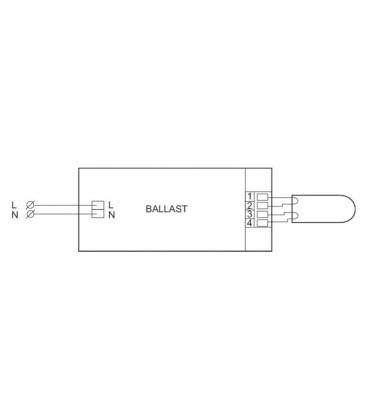

Connector Type Input Terminals Insert
Color Input Terminals Black
Color Output Terminals Grey
Connector Type Output Terminals Insert
Cable Length From Device to Lamp 1.50m
Cable Length Hot Wiring 0.30m
Wire Striplength 8.0-9 mm
Input Terminal Cross Section 0.50 - 1.50 mm²
Output Terminal Cross Section 0.50 - 1.50 mm²
Rated Ballast-Lamp Power 9 W
System Power on PL-S 8.2 W
Rated Lamp Power on PL-S 9 W
Power Loss on PL-S 1.7 W
Lamp Power on PL-S 6.5 W
Lamp Power on TL 5.3 W
Rated Lamp Power on TL 9 W
System Power on TL 7 W
T-Ambient (Max) 40 °C
T-Ambient (Min) –10 °C
T-Case Maximum (Max) 75 °C
Housing SH
Battery Voltage Lamp Ignition 194-254 V
IP Classification IP 20 [ Ingress Protection 20]
Approval Marks F-Marking, CE marking, ENEC certificate, CB Certificate

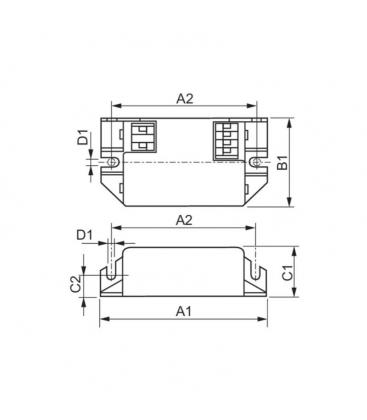

Length A1 80 mm
Fixing Hole Distance Length A2 70 mm
Width B1 40 mm
Height C1 22 mm
Fixing Hole Diameter D1 4.4 mm
Benefits
• Can be operated with movement-detection control systems.
• Automatic restart (after voltage dip or lamp exchange) ensures easy operation and hassle-free re-lamping.
• Suitable for use in class I or class II luminaires
Features
• Over 60000 on/off switches on one lamp (depending on lamp/ballast combination)
• Suitable for emergency DC operation between 190 and 254 V
• Programmed, flicker-free, pre-heated start ( < 0.8 s which allows the lamp to be switched on and off without reducing useful life
Applications
• Used with movement-detection control systems like Philips OccuPlus
• Mainly for indoor applications such as spotlights, downlights, light boxes, and emergency and security fixtures used largely in retail stores, office buildings, hotels, private homes and residential buildings
• Domestic applications such as outdoor garden lighting, garage areas, stairways
