Ballasts, Electronic
QTP M 2x26 32W 220V
329158 | Manufacturer: Osram | EAN: 4008321329158 | MPN: QTP-M-2-26-32
More info - QTP M 2x26 32W Electronic Ballast Efficient
The QTP M 2x26 32W 220V is a QUICKTRONIC-M ECG designed for CFL and circular FL 16 mm lamps. With an input voltage range of 198-264 V, it ensures reliable performance. Its compact size (123mm x 79mm x 33mm) makes installation easy. Enjoy benefits like long lamp life, perfect start with motion sensors, and separate installations with optional cable clamp. Suitable for emergency lighting systems, public buildings, sports halls, factories, and more. Trust the VDE/VDE EMC certified system for quality assurance.
Input voltage 198 - 264 V
Line current 0.30 A
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
DC voltage 176 - 276 V
Operating frequency 45 kHz
Max. no. of ECGs on circuit breaker 10 A 11
Max. no. of ECGs on circuit breaker 16 A 19
Starting time 1s

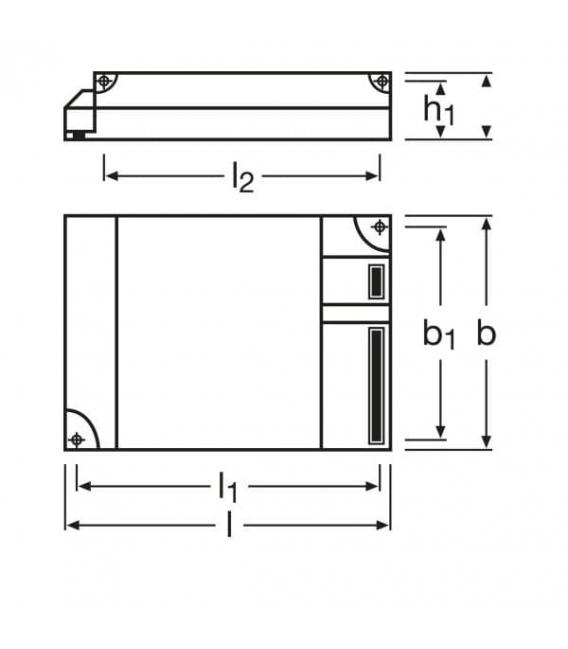

Length 123 mm
Width 79 mm
Height 33 mm
Mounting hole spacing, length 111 mm
Cable cross-section, output side 0.5-1.5 mm²
Cable cross-section, input side 0.5-1.5 mm²
Ambient temperature range –20…+50 °C
ECG lifetime 50000 h
Optional cable clamp, see chapter ECG mountings - cable clamp
Dimmable No
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / GOST / RCM
EEI - Energy Label A2
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Perfect lamp start for applications with motion sensors
• Separate installations thanks to optional cable clamp for K2 and K3 casings
• VDE/VDE EMC certified system
Areas of application
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Public buildings
• Sports halls and factories
• Wide range of applications
