QTP5 1x49W 220V Quicktronic professional
329370 | Manufacturer: Osram | EAN: 4008321329370 | MPN: QTP5-1-49
More info - QTP5 1x49W 220V Electronic Ballast Professional Quality
QUICKTRONIC PROFESSIONAL 5 ECG for FL 16 mm. Long lamp life, perfect start with motion sensors, and high energy efficiency. Ideal for emergency lighting systems, industry, offices, public buildings, sports halls, factories, and strip lighting. Suitable for DC operation and modernizing existing systems. VDE/VDE EMC certified system ensures reliability.
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
DC voltage 176 - 276 V
Operating frequency 40-50 kHz
Max. no. of ECGs on circuit breaker 10 A 17
Max. no. of ECGs on circuit breaker 16 A 28
Starting time 1s

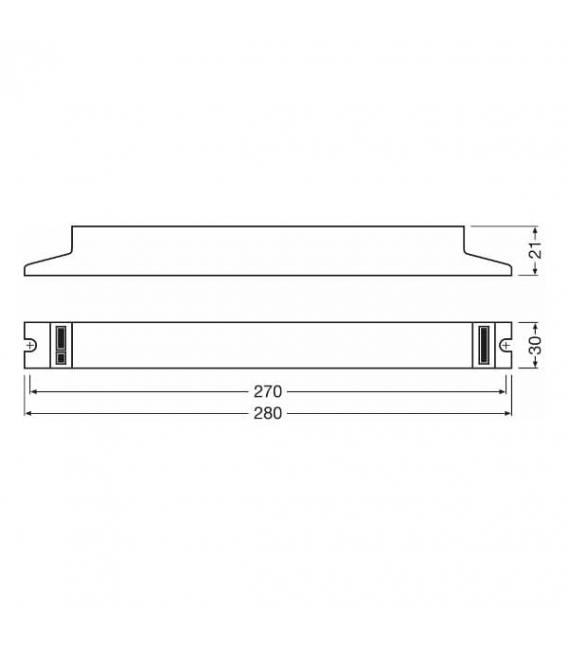

Length 280 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 270 mm
Ambient temperature range –20…+50 °C
Dimmable No
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / CE / ENEC 10
EEI - Energy Label A2 BAT
Standards acc. to EN 61347-2-3 / acc. to EN 60929 / acc. to EN 55015: 2006 + A1: 2007 / acc. to EN 61000 - 3-2 / acc. to EN 61547
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Perfect lamp start for applications with motion sensors
• Automatic restart after lamp replacement
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology
Applications
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Industry
• Open-plan offices, corridors and storage rooms
• Public buildings
• Sports halls and factories
• Strip lighting
• Suitable for emergency lighting (DC operation)
• Modernization of existing systems
