QTP M 1x26 42W 220V
329134 | Manufacturer: Osram | EAN: 4008321329134 | MPN: QT-M-1-26-42-220-S
More info - QTP M 1x26 42W Electronic Ballast Efficient
The QTP M 1x26 42W 220V is a QUICKTRONIC-M ECG designed for CFL and circular FL 16 mm lamps. With an input voltage of 198-264 V, it ensures reliable performance. Its compact size (103mm x 67mm x 31mm) and optional cable clamp make installation easy. Enjoy long lamp life, perfect start with motion sensors, and VDE/VDE EMC certification. Ideal for emergency lighting systems, public buildings, sports halls, factories, and more.
Input voltage 198 - 264 V
Line current 0.20 A
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
DC voltage 176 - 276 V
Operating frequency 47 kHz
Max. no. of ECGs on circuit breaker 10 A 17
Max. no. of ECGs on circuit breaker 16 A 28
Starting time 1s

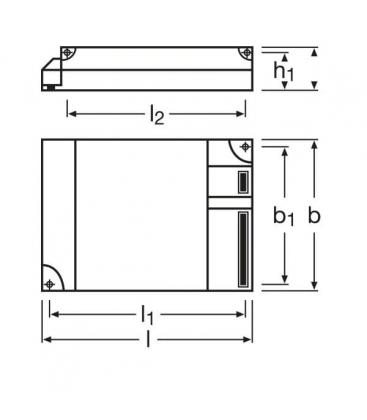

Length 103 mm
Width 67 mm
Height 31 mm
Mounting hole spacing, length 94 mm
Cable cross-section, output side 0.5-1.5 mm²
Cable cross-section, input side 0.5-1.5 mm²
Ambient temperature range –20…+50 °C
ECG lifetime 50000 h
Optional cable clamp, see chapter ECG mountings - cable clamp
Dimmable No
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / GOST / RCM
EEI - Energy Label A2
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Perfect lamp start for applications with motion sensors
• Separate installations thanks to optional cable clamp for K2 and K3 casings
• VDE/VDE EMC certified system
Areas of application
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Public buildings
• Sports halls and factories
• Wide range of applications
