Ballasts, Electronic
QTi 2x14 24 21 39W GII 220V Quicktronic intelligent
1383396 | Manufacturer: Osram | EAN: 4008321383396 | MPN: QTI-2-14-24-21-39
More info - QTi 2x14 24 21 39W GII Electronic Ballast Intelligent
The QUICKTRONIC INTELLIGENT ECG for FL 16 mm is a high-quality product designed to provide efficient and reliable lighting solutions. With a nominal voltage of 220-240V, mains frequency of 50-60Hz, and dimensions of 360mm x 30mm x 21mm, this intelligent electronic control gear ensures optimal performance. It is suitable for various applications such as emergency lighting systems, open-plan offices, sports halls, and more. Benefit from its long lamp life, automatic restart after replacement, and energy efficiency. Upgrade your lighting system with the QUICKTRONIC INTELLIGENT ECG for FL 16 mm today!
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
DC voltage 176 - 276 V
Operating frequency 42 - 85 kHz

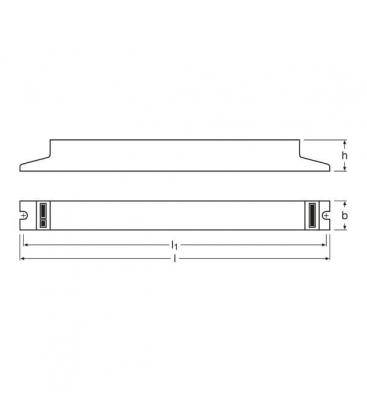

Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Ambient temperature range –20…+50 °C
Dimmable No
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / CE
EEI - Energy Label A2 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology
Areas of application
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Industry
• Open-plan offices, corridors and storage rooms
• Public buildings
• Sports halls and factories
• Strip lighting
• Suitable for emergency lighting (DC operation)
• Modernization of existing systems
