QT FI T8 3x18W 4x18W 220V Quicktronic
294302 | Manufacturer: Osram | EAN: 4008321294302 | MPN: QT-FIT8-3X18-4X18
More info - QT FIT8 3x18W 4x18W Electronic Ballast Efficient
QT FIT8 3x18W 4x18W 220V Quicktronic - High-performance ECG for T8 /26 mm lamps. Long lamp life, automatic restart after replacement, and perfect start with motion sensors. VDE/VDE EMC certified system ensures safety and very high energy efficiency. Ideal for open-plan offices, public buildings, strip lighting, emergency lighting (DC operation), and modernizing existing systems.
Input voltage AC 198 - 264 V
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage DC 185-264 V
Operating frequency 40-50 kHz
Max. ECG no. on circuit breaker 10 A (B) 8
Max. ECG no. on circuit breaker 16 A (B) 13
Inrush current 15 A
Starting time 2s

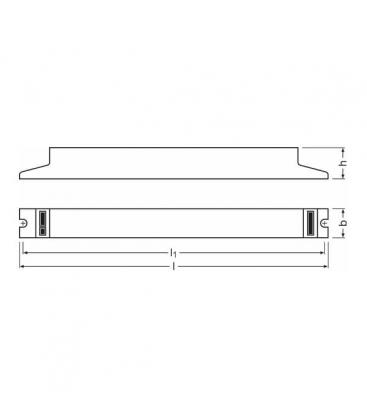

Length 280 mm
Width 40 mm
Height 28 mm
Mounting hole spacing, length 270 mm
Cable cross-section, output side 0.5-1.5 mm²
Cable cross-section, input side 0.5-1.5 mm²
Ambient temperature range –15…+50 °C
ECG lifetime 50000 h
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / CE
EEI - Energy Label A2
Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015: 2006 + A1: 2007/Acc. to EN 61000 - 3-2/Acc. to EN 61547
Protection class I
Type of protection IP20
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology
Applications
• Open-plan offices, corridors and storage rooms
• Public buildings
• Strip lighting
• Suitable for emergency lighting (DC operation)
• Suitable for luminaires of protection class I
• Modernization of existing systems
