Ballasts, Magnetic
Ballast NAHJ 250.915 220V 50Hz HS HI
570963 | Manufacturer: Vossloh Schwabe | EAN: 1616869019993 | MPN: 570963
More info - Ballast NAHJ 250.915 Magnetic 220V 50Hz HI
The Ballast NAHJ 250.915 220V 50Hz HS HI is a standard ballast that is vacuum-impregnated with polyester resin for durability. With screw terminals ranging from 0.5 to 2.5 mm², it offers easy installation. This ballast has a protection class I and is compatible with HS and HI lamps. It provides an output of 250W at a voltage of 230V and frequency of 50Hz. Its compact shape measures at 53 × 66 mm, while its overall dimensions are 180 ×155 ×110 mm (a × b × c). Energy-efficient with an EEI=A3 rating, this ballast ensures reliable performance for your lighting needs.
Standard ballast
Vacuum-impregnated with polyester resin
Screw terminals: 0.5 - 2.5 mm²
Protection class I
Lamp type: HS, HI
Output [W]: 250
Voltage [V]: 230
Frequency [Hz]: 50
Shape: 53 × 66 mm

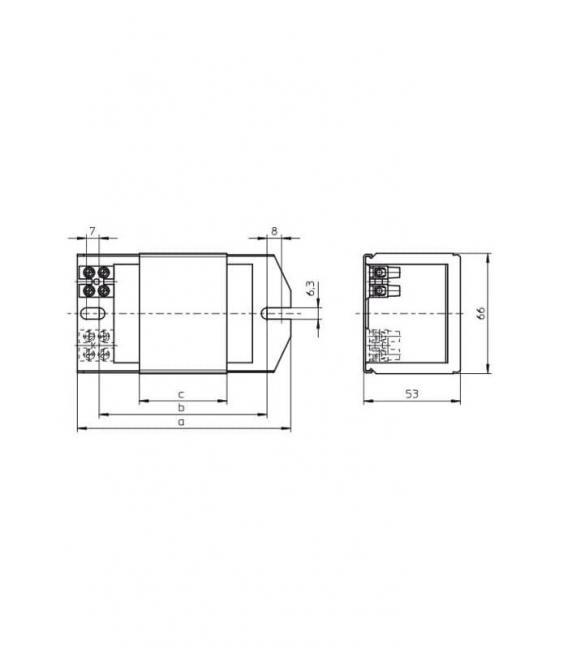

Dimensions (a × b × c): 180 × 155 × 110 mm
Energy efficiency: EEI=A3
