Ballasts, Magnetic
397974 | Manufacturer: Vossloh Schwabe | EAN: 4050732397974 | MPN: 503868
Product out of stock. Delivery may be delayed.
The Ballast L13.849 220V 50Hz TC-D T is a standard magnetic ballast for traditional lamps and fluorescent tubes. With vacuum-impregnated polyester resin, it offers durability and reliability. Featuring push-in terminals for easy installation, IDC terminals for automatic luminaire wiring, and protection class I, this ballast ensures safe operation. Designed for compact fluorescent lamps TC-D/-T (G24d-1/GX24d-1), it provides an output of 13W with a voltage of 230V and frequency of 50Hz. Its compact shape (28 × 41 mm) and dimensions (85 × 75 × 27 mm) make it suitable for various applications. Energy efficiency: B2.
Standard ballast
Vacuum-impregnated with polyester resin
Push-in terminal for leads: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
Protection class I
Lamp type: TC-D/-T
Output [W]: 13 for compact fluorescent lamps TC-D/-T (G24d-1/GX24d-1)
Voltage [V]: 230
Frequency [Hz]: 50

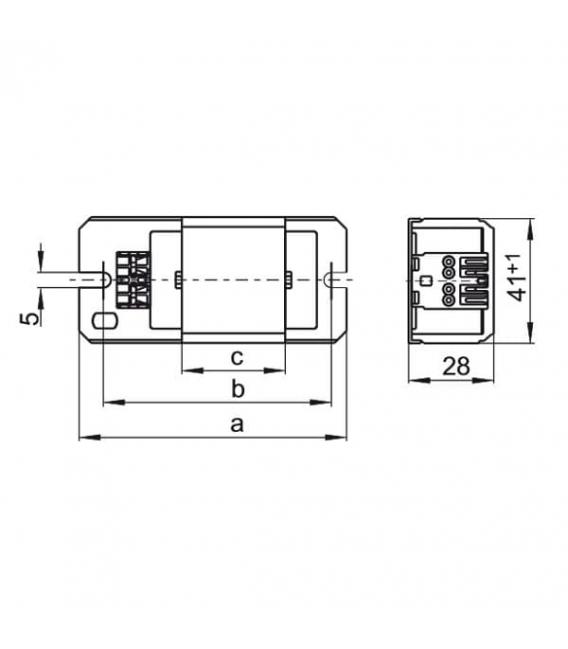

Shape: 28 × 41 mm
Dimensions (a × b × c): 85 × 75 × 27 mm
Energy efficiency: B2
