Ballasts, Magnetic
Ballast LN18.127 220V 50Hz
526596 | Manufacturer: Vossloh Schwabe | EAN: 8712251098652 | MPN: 526596
Product out of stock. Delivery may be delayed.
More info - Ballast LN18.127 220V 50Hz Magnetic
The Ballast LN18.127 220V 50Hz is a slim, vacuum-impregnated ballast with push-in terminals for easy installation. It's designed for automatic luminaire wiring and offers protection class I. Compatible with various lamp types including T8 , TC-F/TC-L, T-U, TC-D/TC-T, and TC-DD. With an output of 18W for fluorescent lamps T8 (G13), it ensures efficient lighting. This ballast operates at a voltage of 230V and frequency of 50Hz. Its compact shape measures 28 × 28 mm while the dimensions are 190 × 180 ×120 mm (a × b × c). Energy efficiency rating: B2.
Slim ballast
Vacuum-impregnated with polyester resin
Push-in terminal for leads: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
Protection class I
Lamp type: T8, TC-F/TC-L, T-U, TC-D/TC-T, TC-DD
Output [W]: 18 for fluorescent lamps T8 (G13)
Output [W]: 20 for fluorescent lamps T12 (G13)
Output [W]: 18, 24 for compact fluorescent lamps TC-F/TC-L (2G10/2G11)
Output [W]: 18 for compact fluorescent lamps T-U (2G13)
Output [W]: 26 for compact fluorescent lamps TC-D/TC-T (G24d-3/GX24d-3)
Output [W]: 28 for compact fluorescent lamps TC-DD (GR8/GR10q)
Voltage [V]: 230
Frequency [Hz]: 50
Shape: 28 × 28 mm

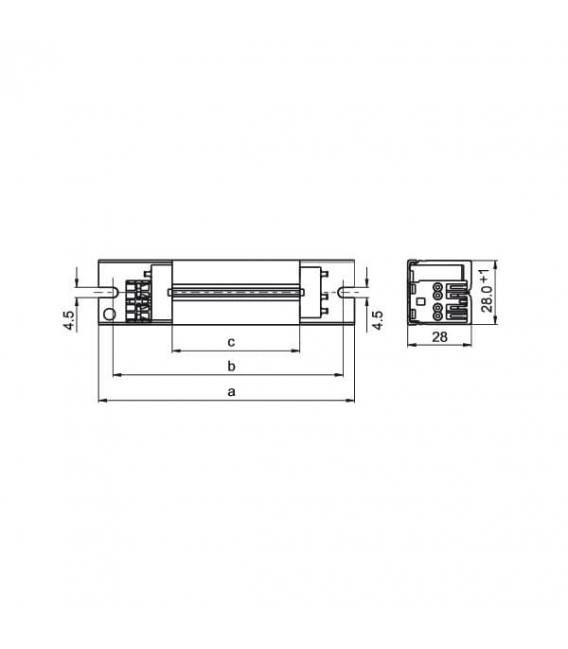

Dimensions (a × b × c): 190 × 180 × 120 mm
Energy efficiency: B2
