Ballasts, Magnetic
Ballast LN30.128 220V 50Hz T8
526595 | Manufacturer: Vossloh Schwabe | EAN: 8712251098645 | MPN: 526595
More info - Ballast LN30.128 220V 50Hz T8 Magnetic for Efficient
The Ballast LN30.128 220V 50Hz T8 is a slim and efficient magnetic ballast for traditional lamps and fluorescent tubes. With push-in terminals for easy installation, this vacuum-impregnated resin ballast ensures reliable performance. It features IDC terminals for automatic luminaire wiring and offers protection class I. Designed for T8 lamps, it has an output of 2 × 15, 30 watts and operates at a voltage of 230V with a frequency of 50Hz. Its compact shape (28 × 28 mm) and dimensions (190 × 180 ×120 mm) make it suitable for various applications. Energy efficiency rating: B2.
Slim ballast
Vacuum-impregnated with polyester resin
Push-in terminal for leads: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
Protection class I
Lamp type: T8
Output [W]: 2 × 15, 30 for fluorescent lamps T8 (G13)
Voltage [V]: 230
Frequency [Hz]: 50
Shape: 28 × 28 mm

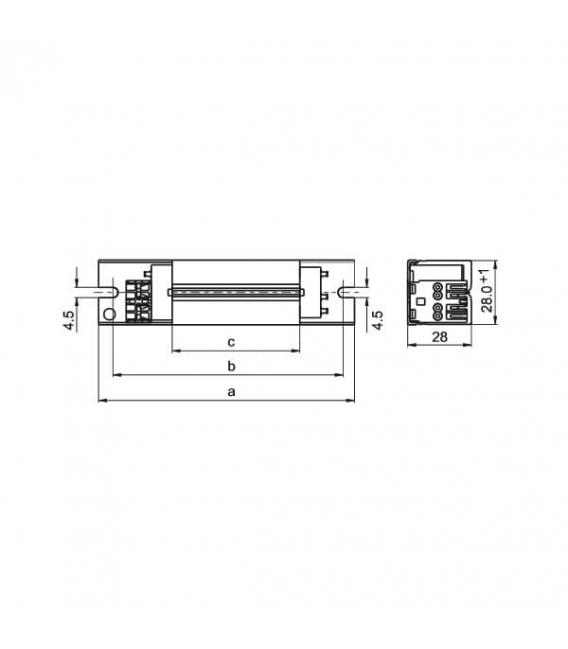

Dimensions (a × b × c): 190 × 180 × 120 mm
Energy efficiency: B2
