TL-D 18W 16 G13 yellow
726872 | Manufacturer: Philips | EAN: 8711500726872 | MPN: 928048001605
More info - TL-D 18W 16 G13 Yellow Colored Light Bulb
This TL-D lamp (tube diameter 26 mm) helps to create special effects and atmospheres or attract attention by using red, green, blue and yellow light. Apart from using the specific colors, it is also possible to mix the colors to create white light. This lamp offers a high light output, thanks to the use of basic powders. Application areas include shops and showrooms, bars and restaurants, demonstration areas, sign lighting and entertainment stores.
Cap-Base G13 [Medium Bi-Pin Fluorescent]
Bulb T8 [26 mm]
Life to 10% failures EM 12000 h
Life to 50% failures EM 15000 h
Color Code 160
Color Designation Yellow
Luminous Flux EM 25 °C, Rated 700 lm
Luminous Flux EM 25 °C, Nominal 700 lm
LLMF EM 2000 h Rated 85%
Design Temperature 25 C
Chromaticity Coordinate X 495 -
Chromaticity Coordinate Y 477 -
Lamp Wattage 18 W
Lamp Wattage EM 25 °C, Nominal 18 W
Lamp Wattage EM 25 °C, Rated 18 W
Lamp Voltage EM 25 °C 59 V
Lamp Current EM 25 °C 0.360 A
Dimmable Yes
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 13 mg
Energy consumption kWh/1000 h 23 kWh

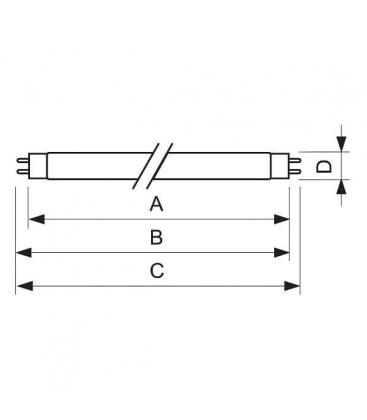

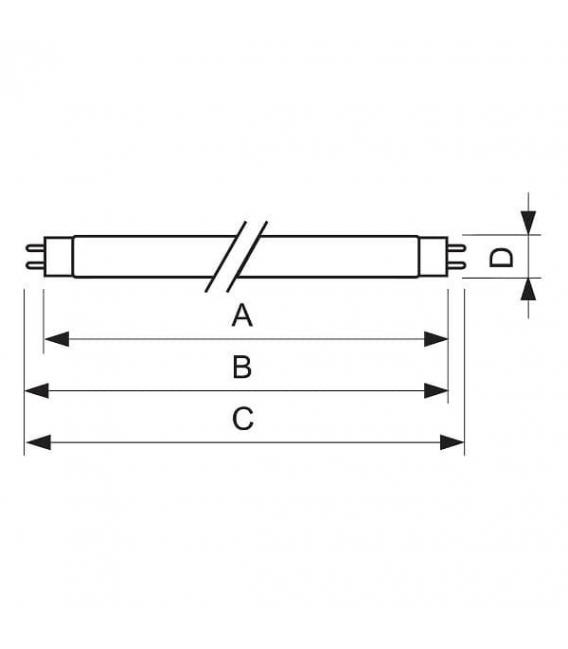

Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 28 (max) mm
Features
• The fluorescent powders of Red and Yellow lamps are mixed with a pigment to filter out unwanted wavelengths
• Can be used with conventional or electronic gear
• Depending on the control gear, dimming is possible
Applications
• For color effects in stage lighting, shop-window lighting, festive lighting, bars, dance halls etc.
