T5 HO 24W 66 G5 549mm green

Nominal wattage 24 W
Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
Rated lamp efficacy (standard condition) 111 lm/W
Rated wattage 22.5 W
Energy consumption 25 kWh/1000 h
Rated luminous flux 2500 lm
Luminous flux at 25 °C 2500 lm
Luminous flux at 35 °C 2750 lm
Light color 66
Nominal luminous flux 2500 lm
Light color as per EN 12464-1 Green
Rated LLMF at 2000 h 0.95
Rated LLMF at 4000 h 0.92
Tube diameter 16 mm

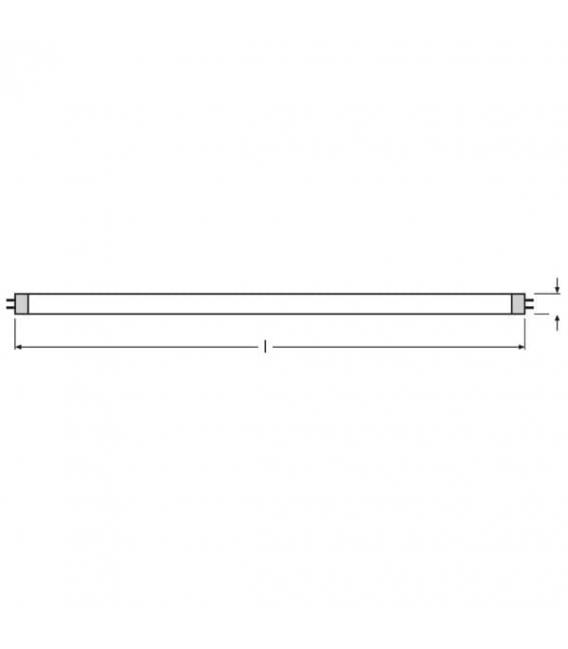

Length 549 mm
Length with base excl. base pins/connection 549 mm
Diameter 16 mm
Maximum diameter 16 mm
Lamp mercury content 1.5 mg
Rated ambient temp.w.max.luminous flux 35 °C
Service life 19000 h
Lifespan 24000 h
Rated lamp survival factor at 2000 h 0.99
Rated lamp survival factor at 4000 h 0.99
Operation mode LLMF/LSF HF
Rated lamp life time 24000 h
Nominal lamp life time 24000 h
Base (standard designation) G5
Appropriate disposal acc. to WEEE Yes
Suitable for ECG operation only
Lamp designed for internal luminaire temperatures of –30…40 °C
Optimum luminous flux achieved at 35 °C
Suitable for indoor Yes
Energy efficiency class A+

Benefits
• Ideal for cost-effective creative illumination and decoration
• Uniform distribution of light over the entire length of the lamp
• Suitable for color mixes, including with white light (2700…6500 K)

Applications
• Shops
• Supermarkets and department stores
• Public buildings

Features
• High color saturation of red, green and blue
• Average lifetime: up to 24000 h (with QUICKTRONIC ECG)
• Dimmable
