LED driver APC 16 350 12 48V 17W IP30

This LED driver is perfect for your Led lighting and moving sign applications. It features a constant current design, universal AC input/full range, short circuit/over voltage protection, fully isolated plastic case with cooling by free air convection. UL8750 & CSA approved with IP30 rating and TUV EN61347-1 design reference. Input voltage 90~264VAC/127~370VDC; output 12-48V/350mA/17W; efficiency 84%; dimensions 77x40x29mm; weight 0.1kg.

Suitable for Led lighting and moving sign applications (moving Led display). The LED driver has a constant current design that ensures stable performance and longevity of the LEDs. With its universal AC input/full range capability, it can be used in various locations without worrying about compatibility issues.

The advantages of this LED driver include:

• Constant current design for stable performance
• Universal AC input/full range compatibility
• Short circuit and overvoltage protection to safeguard the LEDs
• Fully isolated plastic case with cooling by free air convection to prevent overheating
• UL8750 & CSA approved with IP30 rating for safety compliance
• TUV EN61347-1 design reference for quality assurance

The key features of this LED driver are:

• Input voltage: 90 ~ 264 VAC / 127 ~ 370 VDC
• Output: 12-48 V / 350 mA / 17W
• Efficiency: 84%

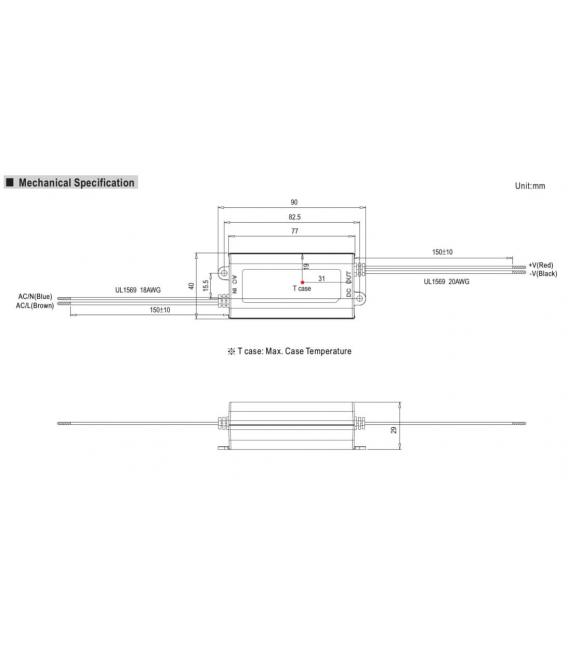

• Dimensions:77 × 40 × 29 mm
• Weight: 0.1 kg

• Input voltage: 90 ~ 264 VAC / 127 ~370 VDC
• Input ac current:
  -0.3A /230 VAC
  -0.5 A/115 VAC
• Output:
  -12-48V/350mA/16.8 W
• Efficiency :84%
• Safety Standards:
  -UL8750,CSA C22.2 No.250.0-08 approved
  -Design refer to TUV EN61347-1

This LED driver is the perfect solution for your LED lighting and moving sign applications. With its constant current design, it ensures stable performance and longevity of your LEDs, while the universal AC input/full range compatibility allows you to use it in various locations without worrying about compatibility issues.
The short circuit and overvoltage protection safeguard your LEDs from damage, while the fully isolated plastic case with cooling by free air convection prevents overheating.
With UL8750 & CSA approval and an IP30 rating, this LED driver meets all safety standards and regulations.
Get reliable performance with this high-quality LED driver!
