Dimmable, 12V-24V, Mean Well PWM
LED driver PWM 90 12 12V 90W IP67
PWM9012 | Manufacturer: Mean Well | MPN: PWM-90-12
More info - Brighten Your Home with dimmable LED Driver PWM 90 12V
Introducing the Dimmable LED Driver PWM 90 12 12V 90W IP67. This high-performance LED driver is designed for precision and efficiency in powering your LED lighting systems. With universal AC input ranging from 90 to 305 VAC, it offers versatility for various applications. The constant voltage PWM output ensures stable current delivery, while the integrated dimming function allows flexibility in control with a range of options. Safety features include protection against short circuits, overloads, and more. Waterproof and dustproof with an IP67 rating, this energy-efficient driver is suitable for commercial, industrial, residential, and outdoor lighting setups. Experience excellence in lighting control with the Dimmable LED Driver PWM 90 12 12V 90W IP67. Backed by a comprehensiv
Introducing the Dimmable LED Driver PWM 90 12 12V 90W IP67
Illuminate Your World with Precision and Efficiency
When it comes to powering your LED lighting systems, there's no room for compromise. That's why we present to you the Dimmable LED Driver PWM 90 12 12V 90W IP67 – the epitome of innovation and reliability in the world of LED drivers. Whether you're an industrial facility, a commercial space, or a homeowner looking to enhance your lighting experience, this high-performance LED driver is engineered to exceed your expectations. Dive into the details of this exceptional product and discover how it can elevate your lighting solutions.
Unleash the Power of Precision Lighting
The Dimmable LED Driver PWM 90 12 12V 90W IP67 is the perfect blend of cutting-edge technology and unwavering performance. Designed for universal AC input, it accommodates a wide range of voltages, from 90 to 305 VAC, making it versatile for various applications. With a built-in active PFC (Power Factor Correction) function, it ensures efficient power utilization, reducing energy wastage.

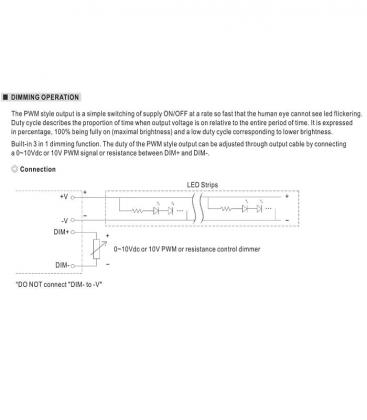

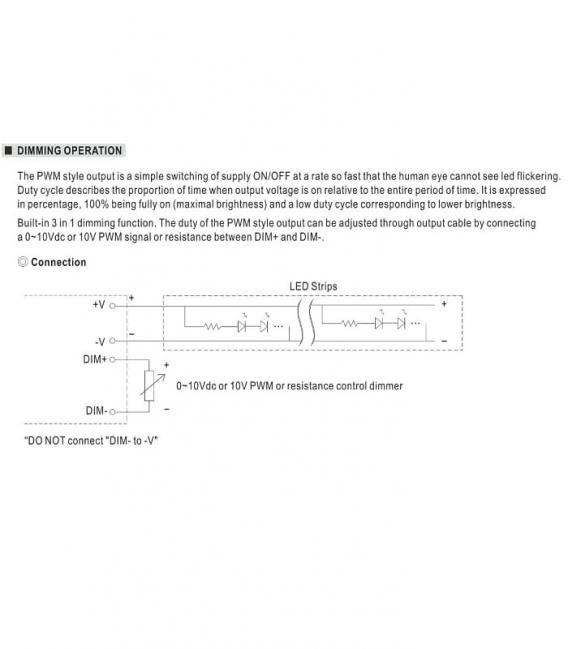

This LED driver boasts a constant voltage PWM (Pulse Width Modulation) style output, delivering a stable and flicker-free current to your LED lights. But what truly sets it apart is the integrated 3 in 1 dimming function, offering flexibility in control. You can dim your lights using 0-10 VDC, PWM signal, or resistance, with a dimming range spanning from 0% to 100%, allowing you to set the perfect ambiance for any occasion.
Safety is paramount, and this LED driver takes it seriously. It comes equipped with multiple protection features, including safeguards against short circuits, overloads, over-voltage, and over-temperature, ensuring both your LEDs and the driver are in safe hands. As a Class II power unit with no FG (Functional Ground), it adheres to the highest safety standards.
Whether you're installing it in dry, damp, or wet locations, rest assured that it's up to the task. With an IP67 rating, it's waterproof and dustproof, ready to withstand the harshest environments. Plus, it's incredibly energy-efficient, with a minimal no-load power consumption of less than 0.5W.
We stand behind the quality of our product, which is why we offer an industry-leading 5-year warranty for your peace of mind. The Dimmable LED Driver PWM 90 12 12V 90W IP67 adheres to various safety standards, including UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384, and of course, IP67. Its design references EN60335-1, ensuring top-notch quality and reliability.
Key Features
- Universal AC input: 90-305 VAC / 127-431 VDC
- Input AC current: 0.95 A / 115 VAC, 0.5 A / 230 VAC, 0.4 A / 277 VAC
- Output: DC 12V / 7.5 A / 90W
- Dimming range: 0-100%
- Input frequency range: 47-63Hz
- High efficiency: Up to 90%

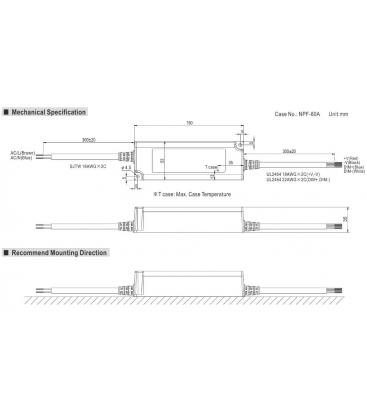

- Dimensions:171 × 63 × 37.5 mm
- Weight: 0.77 kg
Applications
Where Excellence in Lighting Matters
The Dimmable LED Driver PWM 90 12 12V 90W IP67 is a game-changer in various lighting applications:
- Commercial Spaces: Create the perfect ambiance for your business, from cozy dining areas to vibrant retail displays.
- Industrial Facilities: Ensure safety and productivity with precision lighting control in manufacturing environments.
- Residential Lighting: Elevate your home lighting experience, adjusting the mood with ease.
- Outdoor Lighting: Illuminate exteriors efficiently, even in challenging weather conditions.
Benefits
Why Choose the Dimmable LED Driver PWM 90 12 12V 90W IP67?
- Precision Control: Enjoy seamless dimming from 0% to 100%, setting the mood exactly as you desire.
- Energy Efficiency: With up to 90% efficiency, it saves you money on energy bills while being eco-friendly.
- Reliability: Built-in protections ensure the longevity of both the driver and your LED lights.
- Versatility: Suitable for various environments, from dry to wet locations, thanks to its IP67 rating.
- Warranty: Backed by a 5-year warranty, giving you peace of mind in your investment.
Technical Data
The Nuts and Bolts of Excellence
- Input Voltage Range: 90-305 VAC / 127-431 VDC
- Input AC Current: 0.95 A / 115 VAC, 0.5 A / 230 VAC, 0.4 A / 277 VAC
- Output: DC 12 V / 7.5 A / 90 W
- Dimming Range: 0-100%
- Input Frequency Range: 47-63Hz
- Efficiency: 88%
- Dimensions:171 × 63 × 37.5 mm
- Weight: 0.77 kg
Experience Lighting Revolutionized
Elevate your lighting solutions to a whole new level with the Dimmable LED Driver PWM 90 12 12V 90W IP67. It's not just a driver; it's a gateway to precision control, energy efficiency, and peace of mind. With its versatile applications, unmatched benefits, and rock-solid technical data, this LED driver is the key to unlocking a world of exceptional illumination. Don't settle for ordinary lighting—choose brilliance with the Dimmable LED Driver PWM 90 12 12V 90W IP67.
Suitable for:
• Led strip lighting
• Indoor Led lighting
• Led decorative lighting
• Led architecture lighting
