E14 - Ball for compact lamps
Mini P 40 5W 827 220V CL E14 dimm
961845 | Manufacturer: Osram | EAN: 4052899961845 | MPN: LEDSCLP40D-5W/8
More info - Dimmable Mini LED Lamp P 40 5W 827 E14, 220V Power
Introducing the Classic mini LED lamp P 40 5W 827 220V CL E14 dimm. With innovative Led filament technology, this lamp offers instant 100% light and very low energy consumption. Easily replace your ordinary bulbs with this design that matches incandescent lamps in dimensions and luminous flux. Perfect for domestic applications and general illumination, it is also suitable for outdoor use (minimum IP65) and decorative installations. Dimmable with many common dimmers, mercury-free, and boasting a beam angle of up to 300°, this lamp has a lifetime of up to 15000 hours.
Rated wattage 5 W
Nominal wattage 5 W
Nominal voltage 220 - 240 V
Operating frequency 50 - 60 Hz
Power factor λ > 0.70
Claimed equiv. conventional lamp power 40 W
Nominal luminous flux 470 lm
Rated luminous flux 470 lm
Rated color temperature 2700 K
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Luminous flux 470 lm
Color rendering index Ra≥80
Standard deviation of color matching ≤6 sdcm
Warm-up time (60%) < 0.5s
Starting time < 0.5s

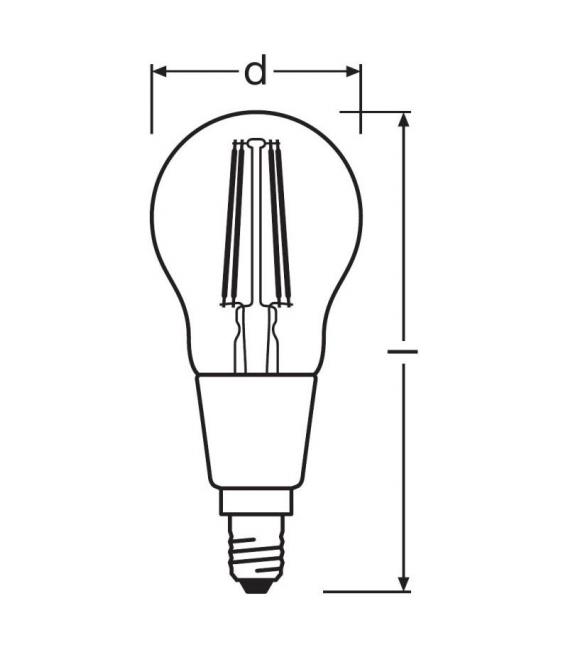

Overall length 110 mm
Diameter 45 mm
Outer bulb P45
Length 78 mm
Maximum temperature at tc test point 65 °C
Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service life 0.70
Base (standard designation) E14
Mercury content 0 mg
Mercury-free Yes
Design / version Clear
Show WEEE picto Yes
Dimmable Yes
Energy efficiency class A+
Energy consumption 5 kWh/1000 h
Benefits
• Lamps with innovative Led filament technology
• Very low energy consumption
• Instant 100% light, no warm-up time
• Can be easily fitted instead of ordinary light bulbs
• Design, dimensions, luminous flux comparable to an incandescent lamp
Applications
• Domestic applications
• General illumination
• Outdoor use in outdoor luminaires only (minimum IP65)
• Perfect for decorative installations
Features
• Led lamps for line voltage
• Dimmable (with many common dimmers, see also www.ledvance.com/dim)
• Mercury-free lamps
• Beam angle: up to 300°
• Lifetime: up to 15000 h
