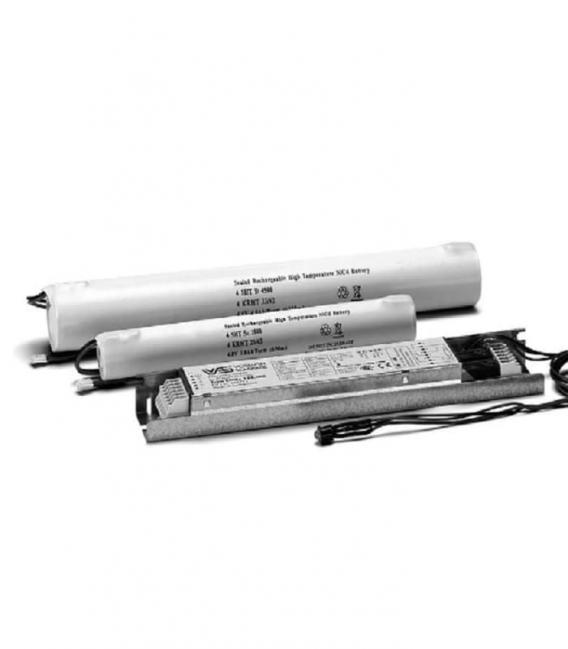

EMXs 180.001 3h Ni Cd Emergency lighting module
936562 | Manufacturer: Vossloh Schwabe | EAN: 4050732936562 | MPN: 188793
More info - EMXs 180.001 3h Ni Cd Emergency Module
Introducing the EMXs 180.001 3h Ni Cd Emergency lighting module! This compact and reliable module ensures your safety during power outages with its EB phase switch-off feature and short circuit protection. With its RoHS-compliant design, it guarantees peace of mind while being environmentally friendly. Its microprocessor-controlled cyclic charging extends battery life by up to 30%. The optical status display keeps you informed at all times, ensuring a fully functional device. Trust in this CENELEC-certified product for your emergency lighting needs!
EB phase is switched off during emergency operation
Short circuit protection
RoHS-compliant (excluding rechargeable batteries)
5-pin technology and therefore EMC-compliant even during emergency operation
Suitable for protection class I
EN 61347-1, EN 61347-2-7
Suitable for systems in accordance with VDE 0108 or EN 50172
Not suitable for lamps with an integrated starter
Cyclic charging of the NiMH battery is microprocessor controlled, which can extend battery life by up to 30%

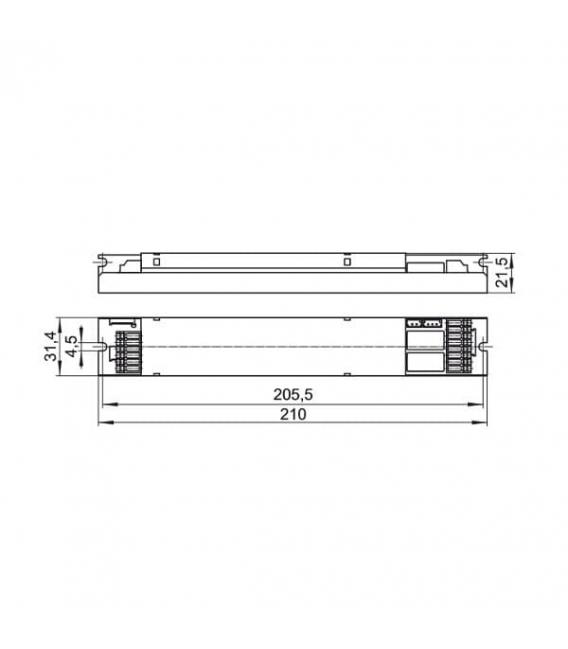

Dimensions (L × W × H): 210 × 31.4 × 21.5 mm
Fixing hole distance: 205.5 mm
Ambient temperature: 0…50 °C
These VS emergency lighting modules include an automatic self-diagnosis feature that performs a two-minute function test of the device, the lamp and the battery every seven days. In addition, the operating period is tested every 12 months with subsequent battery reactivation.
Optical status display
• Red Led, flashing intermittently: defective lamp. The status display will be reset approx. one minute after the fault has been rectified.
• White Led, not illuminated: if connected to the power supply, the Led must turn green after a maximum of five minutes. If not, the device either has no voltage supply or the emergency lighting module is defective.
• Red Led, permanently flashing: battery capacity is too low or the battery supply line has been interrupted.
• Green Led: fully functional.
Technical Details
Permissible mains voltage: 230 V ±10%
Permissible mains frequency: 50 - 60 Hz
Power consumption with standby circuit: 3 W
Nominal period of operation: 1 to 3 hours, depending on the type of rechargeable battery
Batteries: NiCd or NiMH
Charging time: 24 hrs
Protection class 1
Degree of protection: IP20
Certification: CENELEC
Casing: Metal (zinc-plated)
Installation outside the luminaire: Permissible lead length between the emergency lighting module and the lamp must not exceed two metres.
| Dimmable | no |
| Type of connection | Terminal, 2-pole |
| Voltage - (V) | 220 |
| Protection mark - (IPXX) | 20 |
| Factory packed - (pieces) | 25 |
