Master TL-D 58W 840 G13 Secura

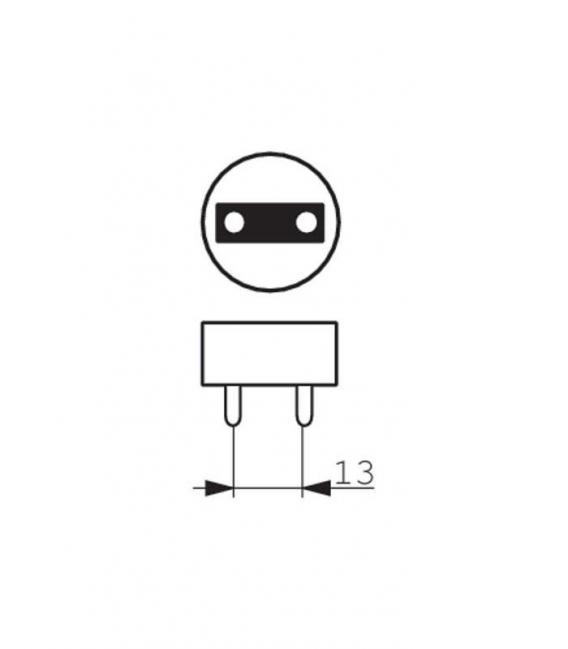

Cap-Base G13 [Medium Bi-Pin Fluorescent]
Bulb T8 [26 mm]
Life to 10% failures EM 12000 h
Life to 10% fail Preheat EL,3h 17000 h
Life to 10% fail Brez predgretja EL,3h 10000 h
Life to 50% failures EM 15000 h
Life to 50% fail Preheat EL,3h 20000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 85 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EM 25 °C, Rated 5000 lm
Luminous Flux EM 25 °C, Nominal 5000 lm
Luminous Efficacy Rated EM 25 °C 85.5 lm/W
LLMF EM 2000 h Rated 96%
LLMF EM 4000 h Rated 95%
LLMF EM 6000 h Rated 94%
Design Temperature 25 C
Chromaticity Coordinate X 383 -
Chromaticity Coordinate Y 386 -
Lamp Wattage 58 W
Lamp Wattage EM 25 °C, Nominal 58 W
Lamp Wattage EM 25 °C, Rated 58 W
Lamp Voltage EM 25 °C 111 V
Lamp Current EM 25 °C 0.670 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 2 mg
Energy consumption kWh/1000 h 68 kWh
Erythemal Radiation < =320 nm 0.3 mW
Erythemal Radiation > 320 nm 16 mW
Damage Factor D/fc 0.13 -

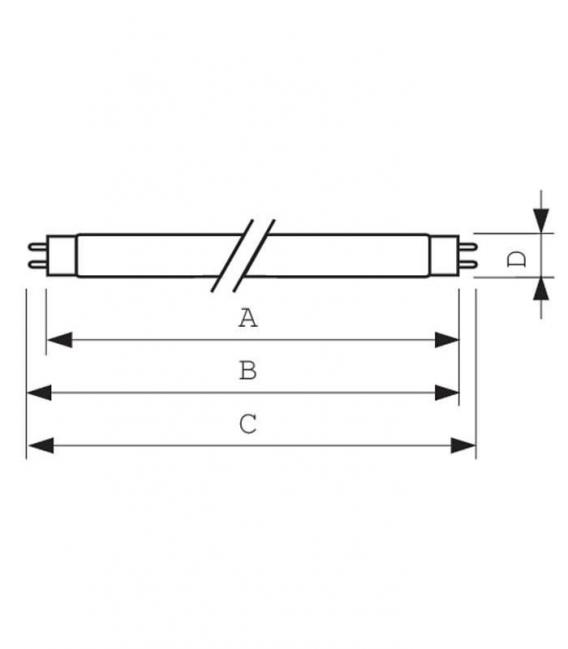

Base Face to Base Face A 1500 (max) mm
Insertion Length B 1504.7 (min), 1507.1 (max) mm
Overall Length C 1514.2 (max) mm
Diameter D 28 (max) mm
• Special protective coating around the lamp, prevents products from contamination in case of accidental lamp breakage; easily recognized in audit situations by two blue rings at one end
• Protects products from discoloring and loss of taste by 90% lower UV-emission
• Makes luminaires compliant with relevant standards in the industry, such as HACCP, ISO 22000 and IEC 61549: Fragment Retention Lamp Standard

Features
• Protective coating (Surlyn) around the lamp, indicated by two blue rings at one lamp end. This lamp is NOT meant for application in closed luminaires
• Fully compliant with IEC 61549 - Fragment Retention Lamp Standard and with relevant standards in the food industry, such as HACCP and ISO 22000
• No degradation under influence of temperature or UV
• Coating blocks 90% of UV emission of the lamp
• Fully recyclable, including the protective lamp coating
• Relatively high efficacy, both initially and during lamp lifetime, with high lumen maintenance

Applications
• For use where contamination resulting from lamp breakage must be prevented, e.g. in food preparation, health care, pharmaceuticals, cleanrooms etc.
• Suitable for use in environments with increased risk of breakage, e.g. sports halls
• Suitable for use in environments where UV emission should be reduced (museums, libraries, archives, food industry, fashion shops, etc.)

General safety informations
