G13 - T8 tubular
LEDtube 20W 865 C Tubular CorePro Series | 1500mm Length
427965 | Manufacturer: Philips | EAN: 8718696427965 | MPN: 929001128702
More info - 20W 865 C LEDtube | CorePro Series Tubular Lamp 1500mm Length
The CorePro Ledtube is an affordable LED solution suitable for replacing T8 fluorescent lamps . With a natural lighting effect and instant energy savings, it's an environmentally friendly choice for general lighting applications. Minimize overall lighting costs with this energy-efficient option that lasts twice as long as traditional tubes. Perfect for parking lots, warehouses, and signage needs.

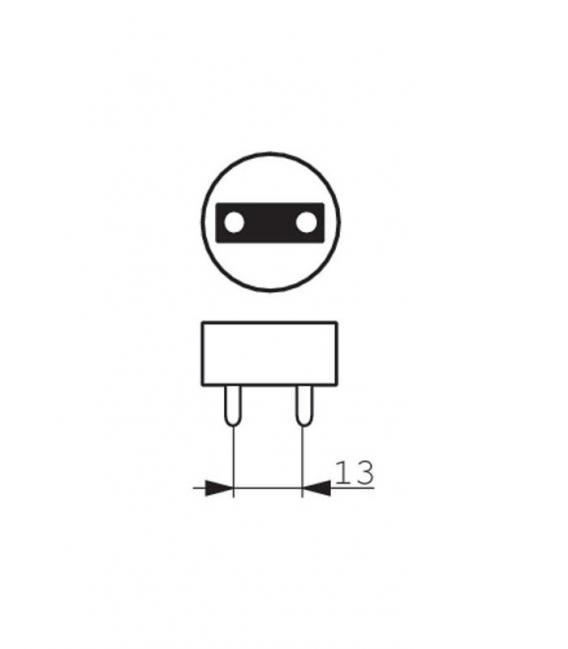

Cap-Base G13 [ G13 Medium Bi-Pin Fluorescent]
Main Application Industrial
Nominal Lifetime 30000 h
Switching Cycle 200000 ×
B50L70 30000
Color Code 865 [ CCT of 6500 K ]

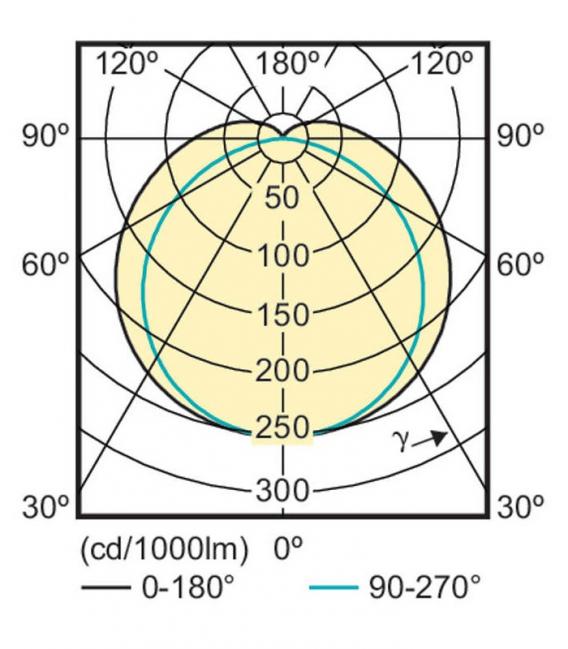

Beam Angle 150°
Luminous Flux (Rated) 2000 lm
Rated Beam Angle 150°
Correlated Color Temperature 6500 K
Color Consistency 6 steps
Color Rendering Index 80
LLMF At End Of Nominal Lifetime 70%
Input Frequency 50 - 60 Hz
Power (Rated) 20 W
Starting Time (Max) 0.5s
Warm Up Time To 60% Light instant full light
Power Factor (Min) 0.9
Voltage 220 - 240 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 56 °C
Dimmable No

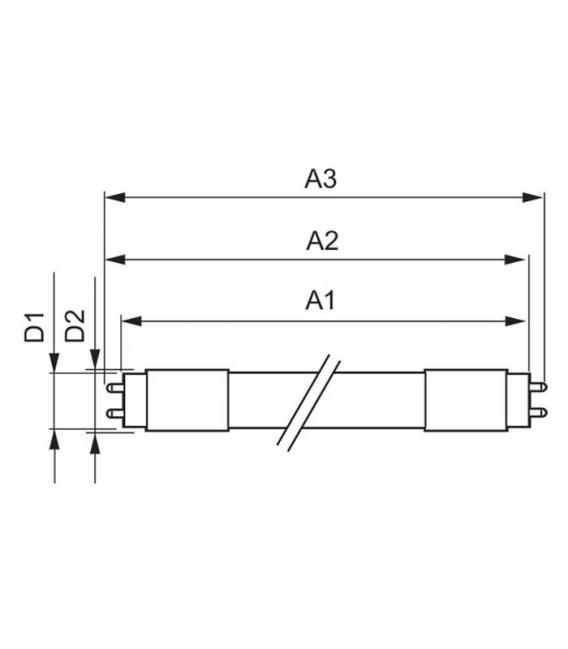

Length A1 1500 mm
Fixing Hole Distance A2 Length 1507.1 mm
Length A3 1514.2 mm
Mounting hole diameter 25.68 mm
Circular outline dimension 28 mm
Energy Saving Product Yes
Suitable For Accent Lighting No
Energy Efficiency Label (EEL) A+
Approval Marks: CE marking, RoHS compliance, KEMA Keur certificate
Energy Consumption kWh/1000 h 20 kWh
Benefits
• Minimizes overall lighting costs
• Offers cheapest and easiest upgrade to Led lighting technology
Features
• Only 50% energy consumption compared to fluorescent tubes
• Lasts two times longer than fluorescent tubes
• Retrofit replacement of existing T8 lamps on electromagnetic (EM) ballast installations
Applications
• Parking lots and covered car parks
• Warehouses and coldrooms
• Signage
