G13 - T8 tubular

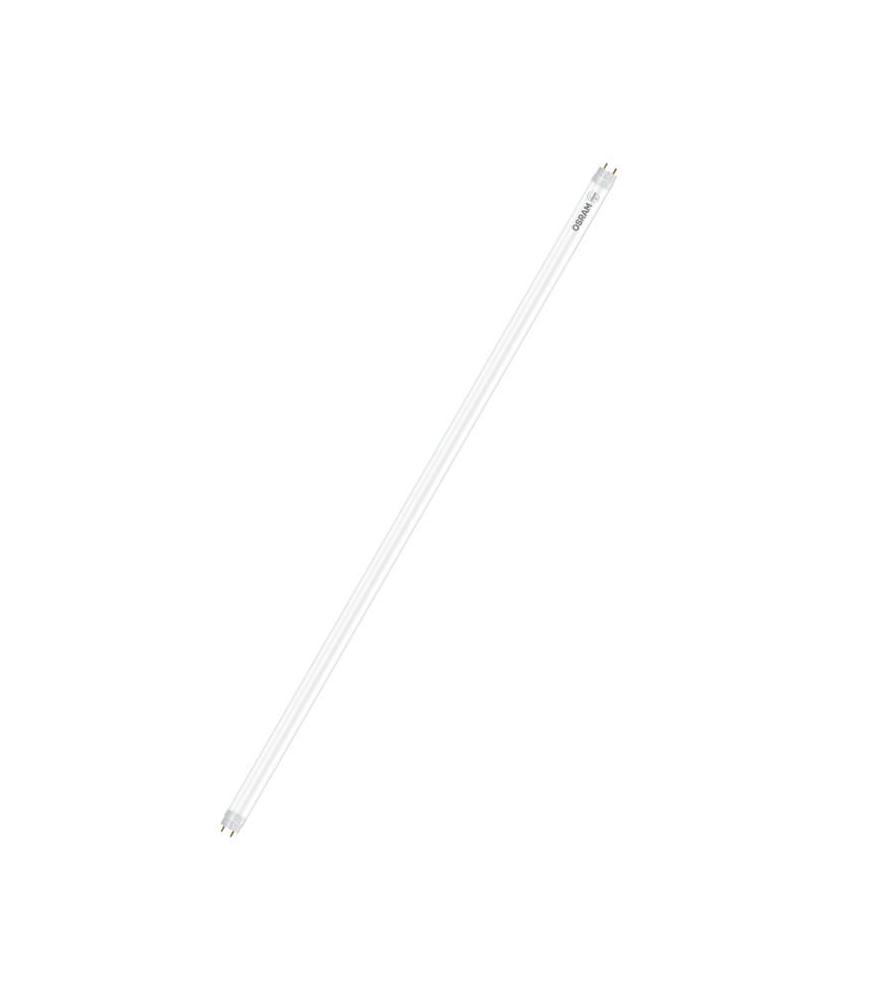

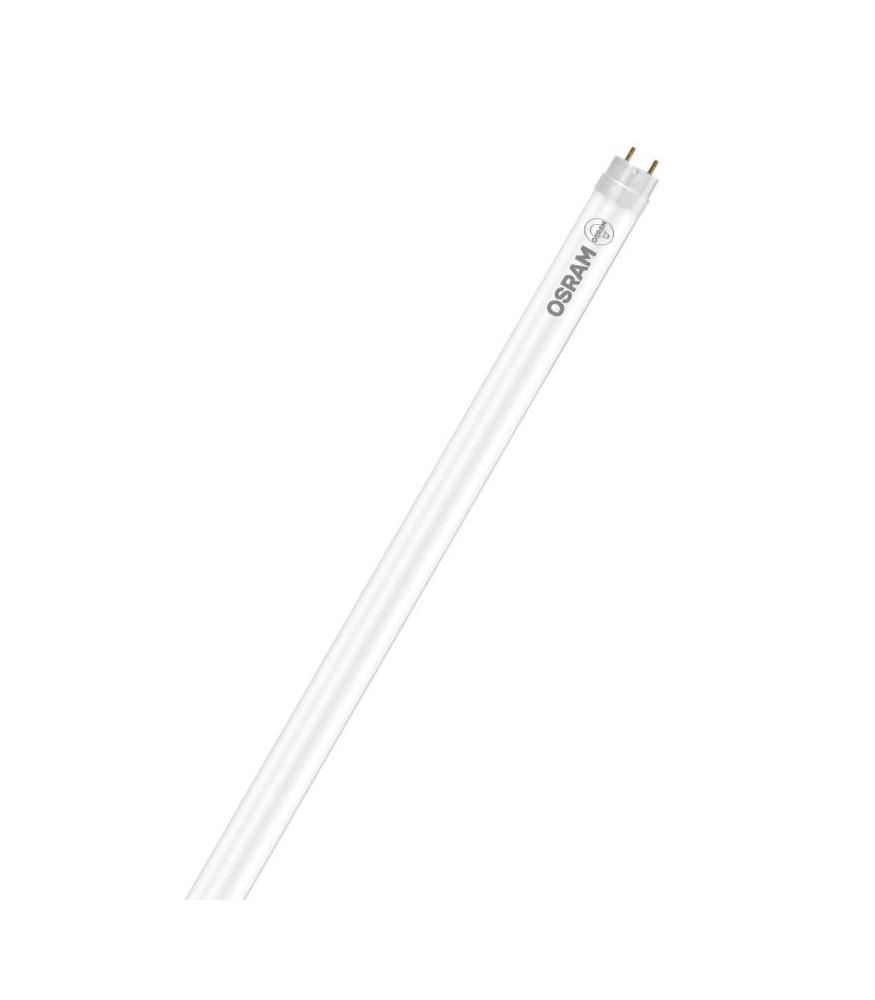

LED SubstiTUBE Value S T8V EM 7.6W 865 G13 600mm
024656 | Manufacturer: Osram | EAN: 4058075024656 | MPN: ST8V-0.6M-7,6W/865
More info - LED Tubular Lamp SubstiTUBE Value ST8V EM 7.6W 865 G13 600mm
Upgrade your lighting with the LED Tubular Lamp - SubstiTUBE Value ST8V EM 7.6W 865 G13 600mm. This cost-optimized alternative to fluorescent lamp offers economic and efficient illumination for any space. With quick and safe installation, energy savings of up to 65%, and high resistance to switching loads, this LED tube is perfect for general illumination in various applications such as corridors, parking garages, warehouses, and more. Say goodbye to rewiring and hello to superior lighting performance.
Rated wattage 7.60 W
Nominal voltage 220 - 240 V
Operating frequency 50 - 60 Hz
Nominal wattage 7.60 W
Nominal current 0.035 A
Type of current AC
Power factor λ > 0.90
Rated color temperature 6500 K
Nominal luminous flux 800 lm
Rated luminous flux 800 lm
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool Daylight
Color temperature 6500 K
Luminous flux 800 lm
Color rendering index Ra≥80
Standard deviation of color matching ≤6 sdcm
Starting time < 0.5s
Warm-up time (60%) < 0.5s
Rated beam angle (half peak value) 190°

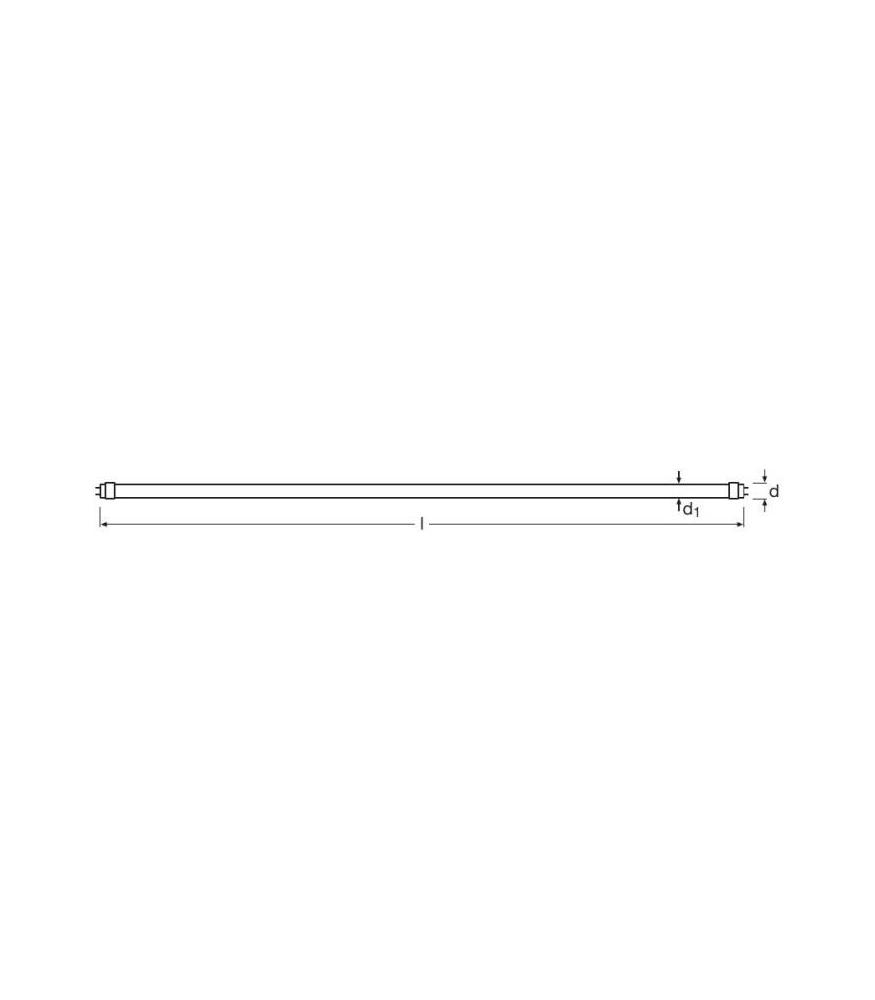

Length with base excl. base pins/connection 590 mm
Tube diameter 25.6 mm
Base diameter 26.7 mm
Product weight 100 g
Overall length 603 mm
Ambient temperature range –20…+45 °C
Lifespan 30000 h
Nominal lamp life time 30000 h
Rated lamp life time 30000 h
Number of switching cycles 200000
Base (standard designation) G13
Mercury-free Yes
Dimmable No
Type of protection IP20
Standards CE/CB
Energy efficiency class A+
Energy consumption 8 kWh/1000 h
Benefits
• No bending thanks to glass technology
• Quick, simple and safe replacement without rewiring
• Energy savings of up to 65% (compared to T8 fluorescent lamp on CCG)
• Instant-on light, therefore ideally suitable in combination with sensor technology
• Very high resistance to switching loads
• Also suitable for operation at low temperatures
Applications
• General illumination within ambient temperatures from –20…+45 °C
• Corridors, stairways, parking garages
• Cooling and storage rooms
• Domestic applications
• Industry
• Warehouses
• Supermarkets and department stores
Features
• Led alternative to classic T8 fluorescent lamps in CCG luminaires
• Uniform illumination
• Mercury-free and RoHS compliant
• Luminous efficacy: up to 105 lm/W
• Tube made of glass
Equipment / Accessories
• Suitable for operation with low-loss and conventional control gears
SAFETY ADVICE
Not suitable for operation with electronic control gear.
Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
Legal advice
When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Are you uncertain about which lamp technology (EM or HF lamps) you need for your luminaire? Our insider tip offers you two ways of easily finding this out.
