G13 - T8 tubular
LEDtube EM 14.5W 840 Tubular 1200mm Length
711071 | Manufacturer: Philips | EAN: 8718696711071 | MPN: 71107100
More info - LEDtube EM 14.5W 840 Tubular LED Lamp 1200mm Length
The CorePro Ledtube is an affordable LED solution that replaces T8 fluorescent lamps . With a natural lighting effect and instant energy savings, it's perfect for general lighting applications. Minimize costs and upgrade to LED technology easily with this environmentally friendly option. Only 50% energy consumption compared to fluorescent tubes and lasts twice as long. Ideal for parking lots, warehouses, coldrooms, and signage installations.

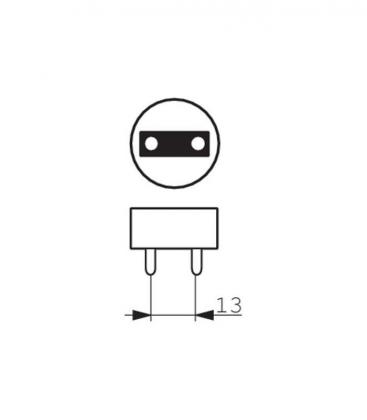

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Main Application Industrial
Nominal Lifetime 30000 h
Switching Cycle 200000 ×
B50L70 30000 h
Color Code 840 [ CCT of 4000 K]
Luminous Flux 1600 lm
Luminous Flux (Rated) 1600 lm
Correlated Color Temperature 4000 K
Color Consistency <6
Color Rendering Index 80
LLMF At End Of Nominal Lifetime 70%
Input Frequency 50 - 60 Hz
Power (Rated) 14.5 W
Lamp Current 70 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Power Factor 0.9
Voltage 220 - 240 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 40 °C
Dimmable No
Product Length 1200 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL) A+
Approval Marks CE marking, RoHS compliance. KEMA Keur certificate
Energy Consumption kWh/1000 h 15 kWh

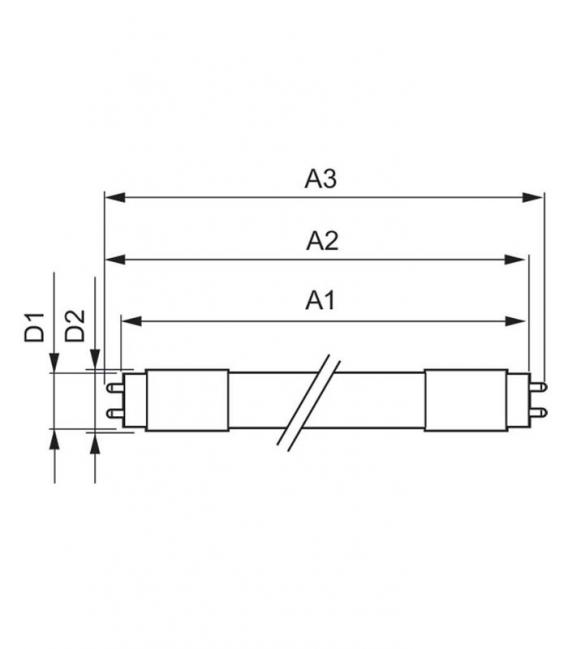

Length A1 1198 mm
Fixing Hole Distance A2 Length 1205 mm
Length A3 1212 mm
Mounting hole diameter D1 25.7 mm
Circular outline dimension D2 28 mm
Benefits
Benefits
• Minimizes overall lighting costs
• Offers cheapest and easiest upgrade to Led lighting technology
Features
• Only 50% energy consumption compared to fluorescent tubes
• Lasts two times longer than fluorescent tubes
• Retrofit replacement of existing T8 lamps on electromagnetic (EM) ballast installations
Applications
• Parking lots and covered car parks
• Warehouses and coldrooms
• Signage
