G13 - T8 tubular
LEDtube EM 8W 865 Tubular CorePro Series (600mm)
711057 | Manufacturer: Philips | EAN: 8718696711057 | MPN: 71105700
More info - LEDtube EM 8W 865 CorePro Series Tubular LED Lamp 600mm
The CorePro Ledtube is an affordable LED solution suitable for replacing T8 fluorescent lamps . It provides a natural lighting effect for general lighting applications, along with instant energy savings. With only 50% energy consumption compared to fluorescent tubes and lasting two times longer, it offers the cheapest and easiest upgrade to LED technology. Perfect for parking lots, warehouses, coldrooms, and signage.

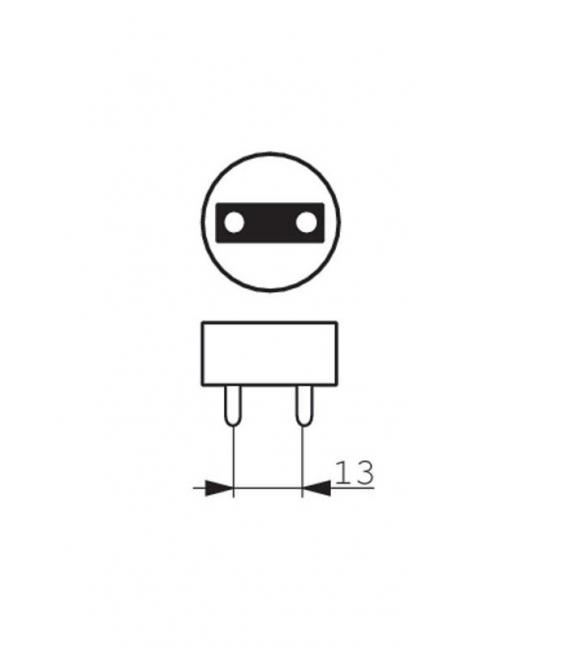

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Main Application Industrial
Nominal Lifetime 30000 h
Switching Cycle 200000 ×
B50L70 30000 h
Color Code 865 [ CCT of 6500 K]
Luminous Flux 800 lm
Luminous Flux (Rated) 800 lm
Correlated Color Temperature 6500 K
Color Consistency <6
Color Rendering Index 80
LLMF At End Of Nominal Lifetime 70%
Input Frequency 50 - 60 Hz
Power (Rated) 8 W
Lamp Current 38 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Power Factor 0.9
Voltage 220 - 240 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 40 °C
Dimmable No
Product Length 600 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL) A+
Approval Marks CE marking, RoHS compliance. KEMA Keur certificate
Energy Consumption kWh/1000 h 8 kWh

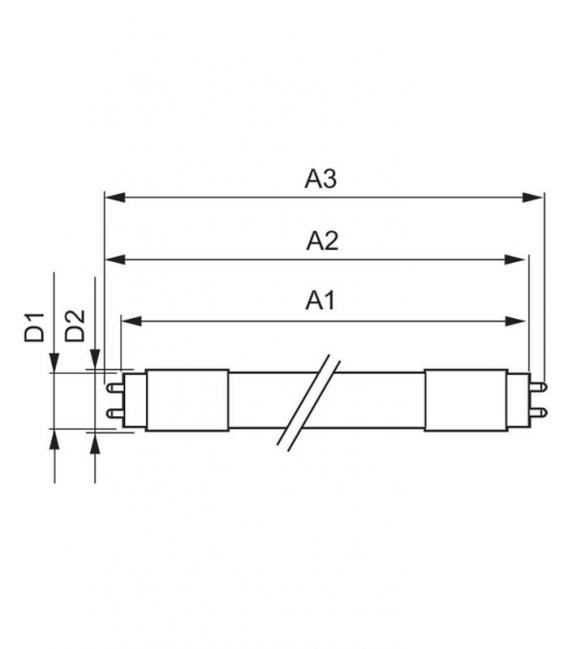

Length A1 588.5 mm
Fixing Hole Distance A2 Length 595.5 mm
Length A3 602.5 mm
Mounting hole diameter D1 25.7 mm
Circular outline dimension D2 28 mm
Benefits
Benefits
• Minimizes overall lighting costs
• Offers cheapest and easiest upgrade to Led lighting technology
Features
• Only 50% energy consumption compared to fluorescent tubes
• Lasts two times longer than fluorescent tubes
• Retrofit replacement of existing T8 lamps on electromagnetic (EM) ballast installations
Applications
• Parking lots and covered car parks
• Warehouses and coldrooms
• Signage
