710913 | Manufacturer: Philips | EAN: 8718696710913 | MPN: 71091300
LEDtube EM 20W 840 Tubular CorePro Series (1500mm)
More info
The CorePro Ledtube EM 20W 840 is an affordable LED solution that replaces T8 fluorescent lamps . With a natural lighting effect and instant energy savings, it is perfect for general lighting applications. Minimize overall costs and upgrade to LED technology easily with this environmentally friendly option. ledtube, em, 20w, 840, corepro, series, tubular, led, lamp

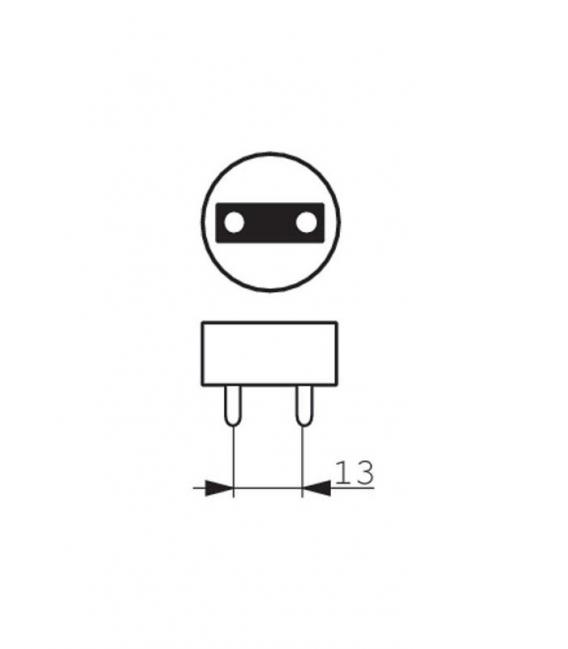

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Main Application Industrial
Nominal Lifetime 30000 h
Switching Cycle 200000 ×
B50L70 30000 h
Color Code 840 [ CCT of 4000 K]
Luminous Flux 2200 lm
Luminous Flux (Rated) 2200 lm
Correlated Color Temperature 4000 K
Color Consistency <6
Color Rendering Index 80
LLMF At End Of Nominal Lifetime 70%
Input Frequency 50 - 60 Hz
Power (Rated) 20 W
Lamp Current 96 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Power Factor 0.9
Voltage 220 - 240 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 40 °C
Dimmable No
Product Length 1500 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL) A+
Approval Marks CE marking, RoHS compliance. KEMA Keur certificate
Energy Consumption kWh/1000 h 20 kWh

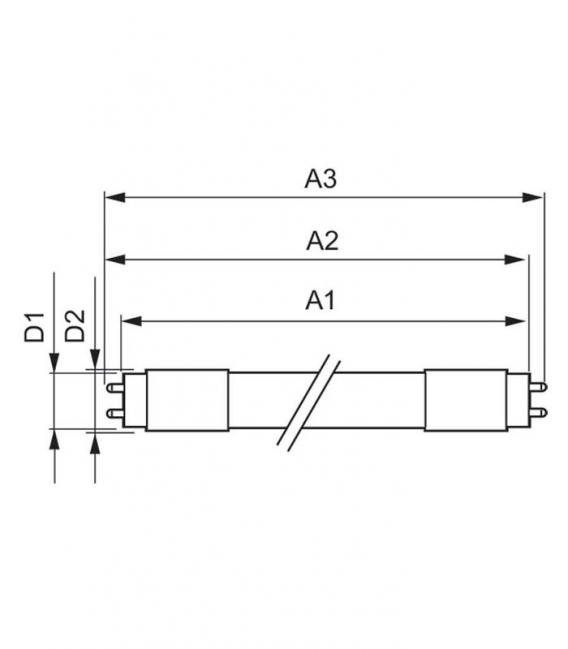

Length A1 1500 mm
Fixing Hole Distance A2 Length 1507.1 mm
Length A3 1514.2 mm
Mounting hole diameter D1 25.7 mm
Circular outline dimension D2 28 mm
Benefits
Benefits
• Minimizes overall lighting costs
• Offers cheapest and easiest upgrade to Led lighting technology
Features
• Only 50% energy consumption compared to fluorescent tubes
• Lasts two times longer than fluorescent tubes
• Retrofit replacement of existing T8 lamps on electromagnetic (EM) ballast installations
Applications
• Parking lots and covered car parks
• Warehouses and coldrooms
• Signage
