652176 | Manufacturer: Philips | EAN: 8718696652176 | MPN: 929001249502
LEDtube InstantFit HF 9W 840 Tubular 600mm
More info
Upgrade to the CorePro Ledtube InstantFit HF and enjoy affordable, energy-saving LED lighting. With a natural lighting effect and easy installation, this tubular LED lamp is perfect for general lighting applications. Say goodbye to high costs and hello to environmentally friendly illumination. ledtube, instantfit, hf, 9w, 840, tubular, led, lamp

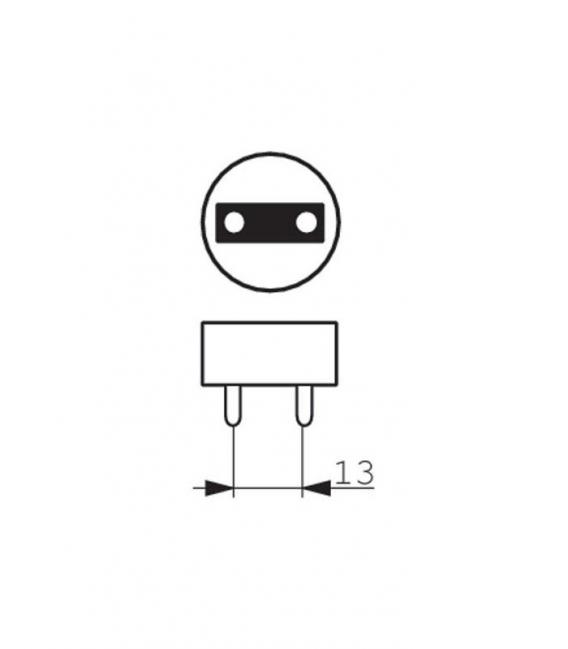

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Nominal Lifetime 30000 h
Switching Cycle 50000 ×
B50L70 30000 h
Color Code 840 [ CCT of 4000 K]
Luminous Flux 800 lm
Luminous Flux (Rated) 800 lm
Correlated Color Temperature 4000 K
Luminous Efficacy (rated) 89 lm/W
Color Consistency <6
Color Rendering Index 83
LLMF At End Of Nominal Lifetime 70%
Power (Rated) 9 W
Lamp Current (Max) 400 mA
Lamp Current (Min) 200 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Voltage 30-80 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 60 °C
Dimmable No
Product Length 600 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL)A
Approval Marks TUV, CE marking, RoHS compliance, KEMA Keur certificate
Energy Consumption kWh/1000 h 12 kWh
Length A1 589.8 mm
Fixing Hole Distance A2 Length 595.7 mm
Length A3 604 mm
Mounting hole diameter D1 27.9 mm
Circular outline dimension D2 28 mm
Benefits
Benefits
• Minimizes overall lighting costs
• Offers the cheapest and easiest upgrade to Led lighting technology
Features
• High energy efficiency
• Long lifetime
• Easy installation; retrofit replacement of existing T8 lamps on electronic (HF) ballast installations
• Conventional form factor to fit into existing luminaires
• No mercury
Applications
• Parking lots and covered car parks
• Industrial facilities and warehouses
• Signage
