G13 - T8 tubular
LEDtube InstantFit HF 9W 865 Tubular CorePro
652190 | Manufacturer: Philips | EAN: 8718696652190 | MPN: 929001249602
More info - LEDtube InstantFit HF 9W 865 Tubular LED Lamp CorePro
The CorePro Ledtube InstantFit HF is an affordable LED solution that replaces T8 fluorescent lamps . With a natural lighting effect and instant energy savings, it's perfect for general lighting applications. This environmentally friendly option minimizes overall lighting costs and offers the easiest upgrade to LED technology. Its high energy efficiency, long lifetime, and easy installation make it a top choice for parking lots, industrial facilities, warehouses, and signage. Say goodbye to mercury with this reliable LED tube lamp.

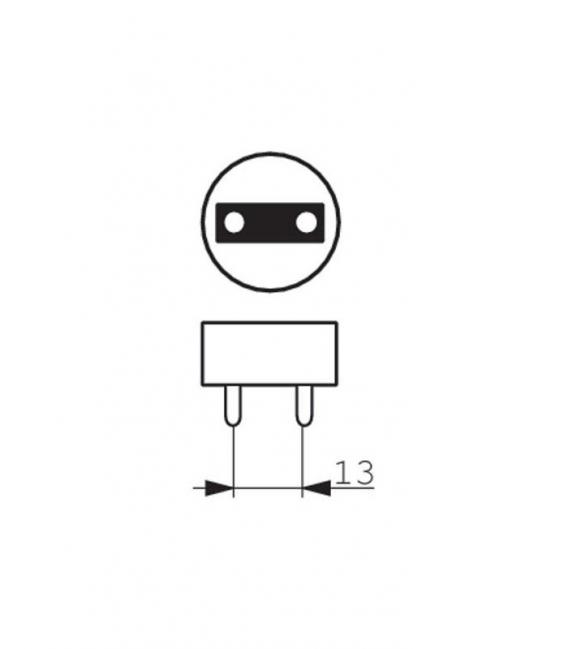

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Nominal Lifetime 30000 h
Switching Cycle 50000 ×
B50L70 30000 h
Color Code 865 [ CCT of 6500 K]
Luminous Flux 800 lm
Luminous Flux (Rated) 800 lm
Correlated Color Temperature 6500 K
Luminous Efficacy (rated) 89 lm/W
Color Consistency <6
Color Rendering Index 83
LLMF At End Of Nominal Lifetime 70%
Power (Rated) 9 W
Lamp Current (Max) 400 mA
Lamp Current (Min) 200 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Voltage 30-80 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 60 °C
Dimmable No
Product Length 600 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL)A
Approval Marks TUV, CE marking, RoHS compliance, KEMA Keur certificate
Energy Consumption kWh/1000 h 12 kWh

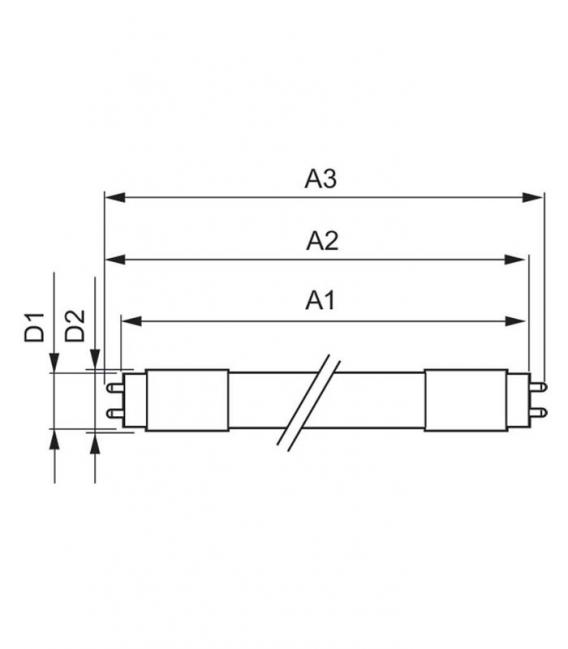

Length A1 589.8 mm
Fixing Hole Distance A2 Length 595.7 mm
Length A3 604 mm
Mounting hole diameter D1 27.9 mm
Circular outline dimension D2 28 mm
Benefits
Benefits
• Minimizes overall lighting costs
• Offers the cheapest and easiest upgrade to Led lighting technology
Features
• High energy efficiency
• Long lifetime
• Easy installation; retrofit replacement of existing T8 lamps on electronic (HF) ballast installations
• Conventional form factor to fit into existing luminaires
• No mercury
Applications
• Parking lots and covered car parks
• Industrial facilities and warehouses
• Signage
