G13 - T8 tubular
LEDtube InstantFit HF 15W 865 Tubular 1200mm
581292 | Manufacturer: Philips | EAN: 8718696581292 | MPN: 929001136502
More info - LEDtube InstantFit HF 15W 865 Tubular LED Lamp 1200mm
Upgrade to the CorePro Ledtube InstantFit HF and enjoy affordable LED lighting that replaces T8 fluorescent lamps . With a natural lighting effect, instant energy savings, design, this 15W tubular LED lamp is perfect for general lighting applications.

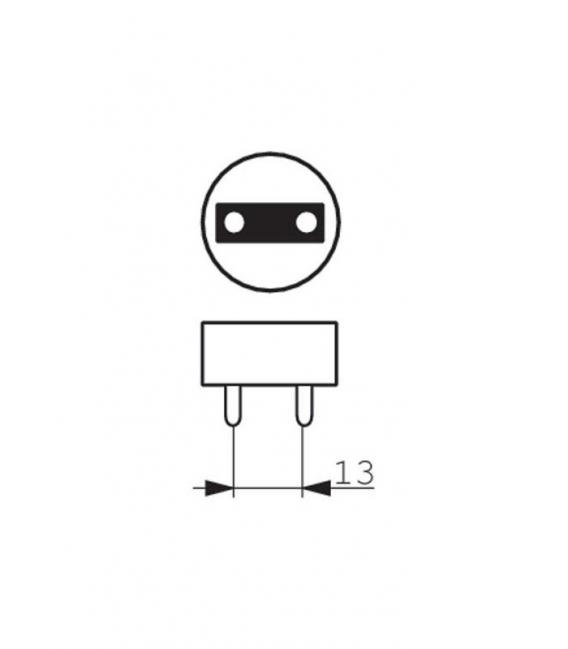

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Nominal Lifetime 30000 h
Switching Cycle 50000 ×
B50L70 30000 h
Color Code 865 [ CCT of 6500 K]
Luminous Flux 1600 lm
Luminous Flux (Rated) 1600 lm
Correlated Color Temperature 6500 K
Luminous Efficacy (rated) 106 lm/W
Color Consistency <6
Color Rendering Index 83
LLMF At End Of Nominal Lifetime 70%
Input Frequency 20000 - 75000 Hz
Power (Rated) 15 W
Lamp Current (Max) 700 mA
Lamp Current (Min) 200 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Power Factor 0.9
Voltage 30-80 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 60 °C
Dimmable No
Product Length 1200 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL) A+
Approval Marks TUV, CE marking, RoHS compliance, KEMA Keur certificate
Energy Consumption kWh/1000 h 19 kWh

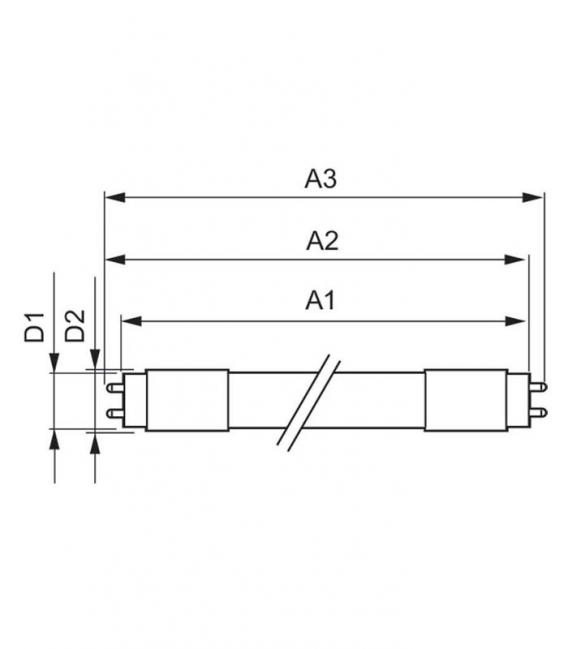

Length A1 1199.4 mm
Fixing Hole Distance A2 Length 1205.3 mm
Length A3 1213.6 mm
Mounting hole diameter D1 27.9 mm
Circular outline dimension D2 28 mm
Benefits
Benefits
• Minimizes overall lighting costs
• Offers the cheapest and easiest upgrade to Led lighting technology
Features
• High energy efficiency
• Long lifetime
• Easy installation; retrofit replacement of existing T8 lamps on electronic (HF) ballast installations
• Conventional form factor to fit into existing luminaires
• No mercury
Applications
• Parking lots and covered car parks
• Industrial facilities and warehouses
• Signage
